ACNT-H313-000E

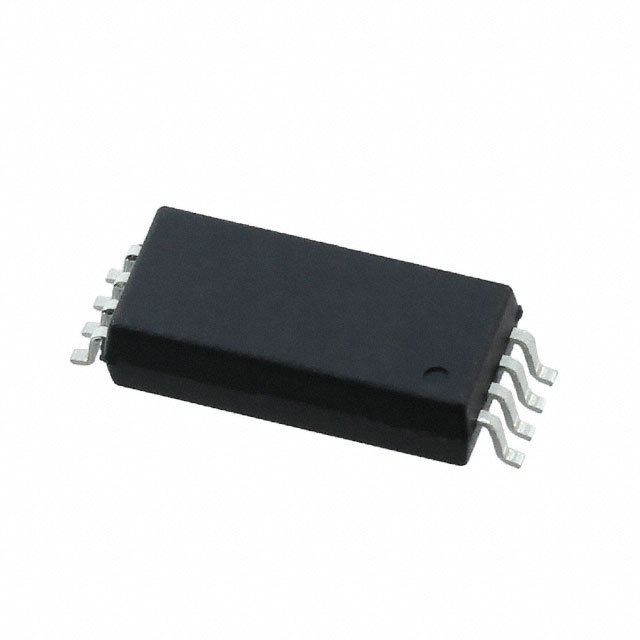

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACNT-H313-000E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACNT-H313-000E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACNT-H313-000E |
|---|---|
| Manufacturer | Avago Technologies (Broadcom Limited) |
| Description | OPTOISO 7.5KV 1CH GATE DRVR 8SO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $2.42 | $2.192 | $1.735 | $1.461 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.37 | $1.256 | $1.187 | $1.142 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACNT-H313-000E | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISO 7.5KV 1CH GATE DRVR 8SO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34519 pcs | Data sheet | ACNT-H313 |
| Category | Isolators | Voltage - Supply | 15 V ~ 30 V |
| Voltage - Isolation | 7500Vrms | Voltage - Forward (Vf) (Typ) | 1.45V |
| Technology | Optical Coupling | Supplier Device Package | 8-SO |
| Series | - | Rise / Fall Time (Typ) | 100ns, 100ns |
| Pulse Width Distortion (Max) | 300ns | Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Packaging | Tube | Package / Case | 8-SOIC (0.543", 13.80mm Width) |
| Other Names | 516-3735 ACNT-H313-000E-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 2.5A Gate Driver Optical Coupling 7500Vrms 1 Channel 8-SO | Current - Peak Output | 2.5A |
| Current - Output High, Low | 2A, 2A | Current - DC Forward (If) (Max) | 25mA |
| Common Mode Transient Immunity (Min) | 40kV/µs | Approvals | CSA, IEC/EN/DIN, UR |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
