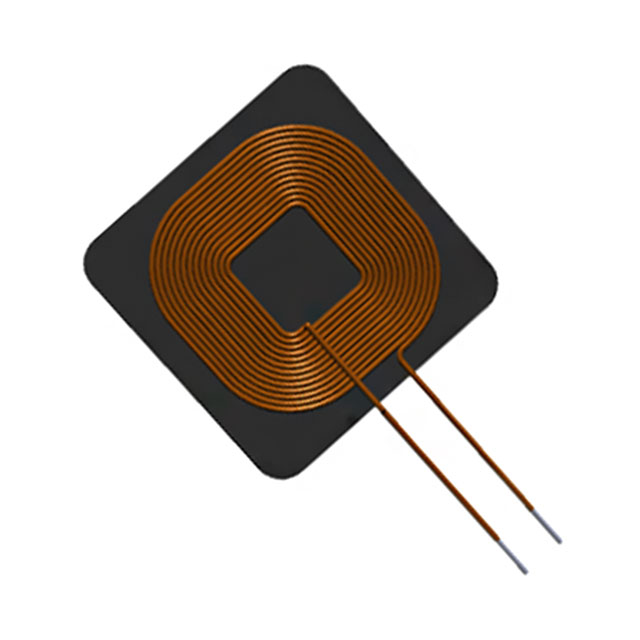

AWCCA-20R20H08-C01-B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AWCCA-20R20H08-C01-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AWCCA-20R20H08-C01-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AWCCA-20R20H08-C01-B |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | RECEIVER COIL, 12UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.625 | $1.489 | $0.975 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.867 | $0.812 | $0.785 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AWCCA-20R20H08-C01-B | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | RECEIVER COIL, 12UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44550 pcs | Data sheet | AWCCA-20R20H08-C01-B |
| Category | Inductors, Coils, Chokes | Type | 1 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 0.79" L x 0.79" W x 0.03" H (20.0mm x 20.0mm x 0.8mm) |
| Series | AWCCA | Q @ Freq | 20 @ 100kHz |
| Other Names | 535-13605 | Operating Temperature | -25°C ~ 85°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 12µH |
| Function | Receiver | Frequency - Self Resonant | - |
| Detailed Description | 1 Coil, 1 Layer 12µH Wireless Charging Coil Receiver 290 mOhm | DC Resistance (DCR) | 290 mOhm |
| Current Rating | - | Current - Saturation | - |
