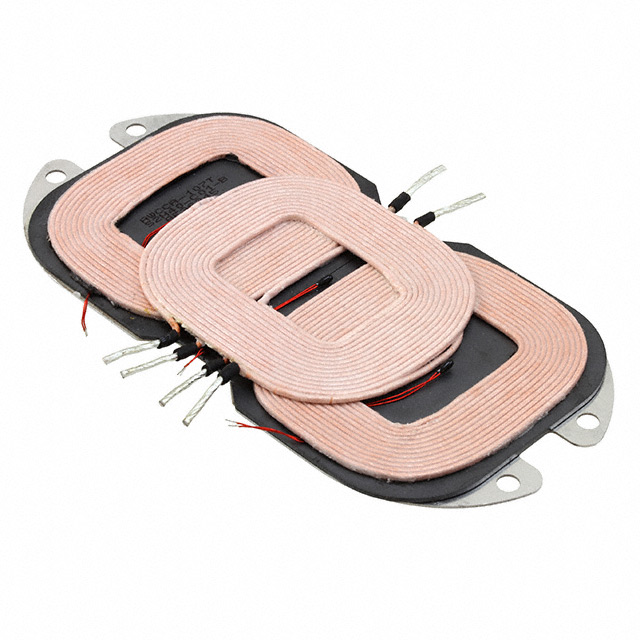

AWCCA-107T52H40-C01-B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AWCCA-107T52H40-C01-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AWCCA-107T52H40-C01-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AWCCA-107T52H40-C01-B |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | TX 3 COIL 1 LAYER 11.5UH 12UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.78 | $3.495 | $2.834 | $2.645 | $2.513 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | AWCCA-107T52H40-C01-B | Manufacturer | Abracon Corporation |
|---|---|---|---|
| Description | TX 3 COIL 1 LAYER 11.5UH 12UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15514 pcs | Data sheet | AWCCA-107T52 Series |
| Category | Inductors, Coils, Chokes | Type | 3 Coil, 1 Layer |
| Tolerance | ±10% | Size / Dimension | 4.25" L x 2.06" W x 0.15" H (108.0mm x 52.5mm x 4.0mm) |
| Series | AWCCA-107T52 | Q @ Freq | 80 @ 100kHz |
| Other Names | 535-12510 | Operating Temperature | -25°C ~ 85°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 11.5µH, 12µH |
| Function | Transmitter | Frequency - Self Resonant | 7MHz |
| Detailed Description | 3 Coil, 1 Layer 11.5µH, 12µH Wireless Charging Coil Transmitter 56 mOhm | DC Resistance (DCR) | 56 mOhm |
| Current Rating | 7.5A | Current - Saturation | 18A |
