Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - LED Drivers > CAT3626AEVB

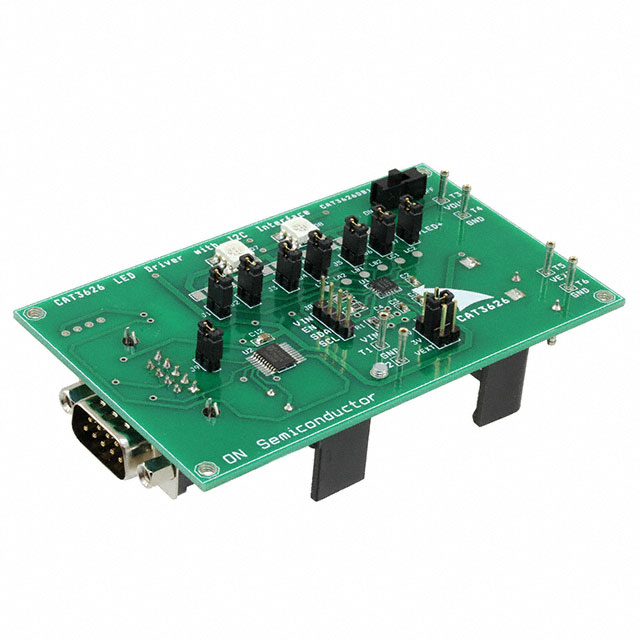

CAT3626AEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CAT3626AEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CAT3626AEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	BOARD EVALUATION DPP CAT3626A
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3988 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	CAT3626AEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	BOARD EVALUATION DPP CAT3626A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3988 pcs	Data sheet	CAT3626AEVB Manual CAT3626
Category	Development Boards, Kits, Programmers	Voltage - Output	-
Voltage - Input	3 V ~ 5.5 V	Utilized IC / Part	CAT3626
Supplied Contents	Board(s)	Series	-
Outputs and Type	6, Non-Isolated	Other Names	CAT3626AEVB-ND CAT3626AEVBOS
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	-	Detailed Description	CAT3626 6, Non-Isolated Output LED Driver Evaluation Board
Current - Output / Channel	32mA
