CAT3612HV2-GT2

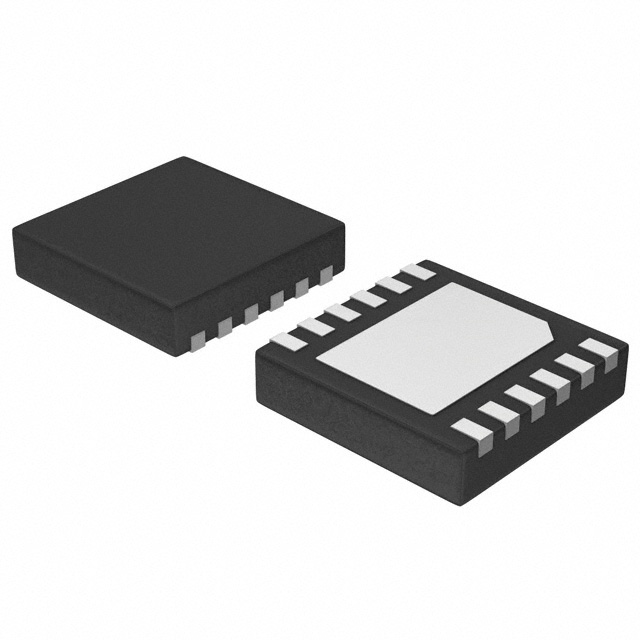

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CAT3612HV2-GT2 with confidence from Components-World.HK, 1 Year Warranty
Dowload CAT3612HV2-GT2 Details in PDFSee Product Specifications for product details.
Buy CAT3612HV2-GT2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CAT3612HV2-GT2 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC LED DRIVER RGLTR DIM 12TDFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CAT3612HV2-GT2 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC LED DRIVER RGLTR DIM 12TDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4642 pcs | Data sheet | CAT3612 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 5.5V | Voltage - Output | 7V |
| Type | DC DC Regulator | Topology | Switched Capacitor (Charge Pump) |
| Supplier Device Package | 12-TDFN (3x3) | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 12-WFDFN Exposed Pad |
| Operating Temperature | -40°C ~ 85°C (TA) | Number of Outputs | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Yes |
| Frequency | 1MHz | Dimming | Multi-Step |
| Detailed Description | LED Driver IC 2 Output DC DC Regulator Switched Capacitor (Charge Pump) Multi-Step Dimming 150mA (Flash) 12-TDFN (3x3) | Current - Output / Channel | 150mA (Flash) |
| Base Part Number | CAT3612 | Applications | Camera Flash |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
