MN101LR04DXW

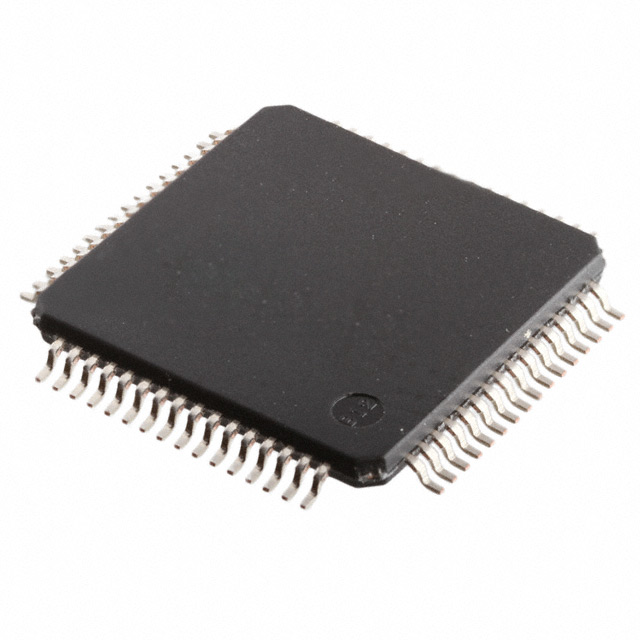

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MN101LR04DXW with confidence from Components-World.HK, 1 Year Warranty
Dowload MN101LR04DXW Details in PDFSee Product Specifications for product details.
Buy MN101LR04DXW with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MN101LR04DXW |
|---|---|
| Manufacturer | Panasonic |
| Description | IC MCU 8BIT 64KB RERAM 64TQFP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $2.331 | $2.097 | $1.91 | $1.724 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.584 | $1.444 | $1.258 | $1.211 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MN101LR04DXW | Manufacturer | Panasonic |
|---|---|---|---|
| Description | IC MCU 8BIT 64KB RERAM 64TQFP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31271 pcs | Data sheet | MN101LR0xD Datasheet |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V |
| Supplier Device Package | 64-TQFP (10x10) | Speed | 10MHz |
| Series | MN101L | RAM Size | 4K x 8 |
| Program Memory Type | ReRAM | Program Memory Size | 64KB (64K x 8) |
| Peripherals | DMA, LCD, LVD, POR, PWM, WDT | Packaging | Tray |
| Package / Case | 64-TQFP | Other Names | P16827 |
| Oscillator Type | Internal | Operating Temperature | -40°C ~ 85°C (TA) |
| Number of I/O | 53 | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 24 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| EEPROM Size | - | Detailed Description | AM13L MN101L Microcontroller IC 8-Bit 10MHz 64KB (64K x 8) ReRAM 64-TQFP (10x10) |
| Data Converters | A/D 6x12b | Core Size | 8-Bit |
| Core Processor | AM13L | Connectivity | I²C, UART/USART |
| Base Part Number | MN101LR |
