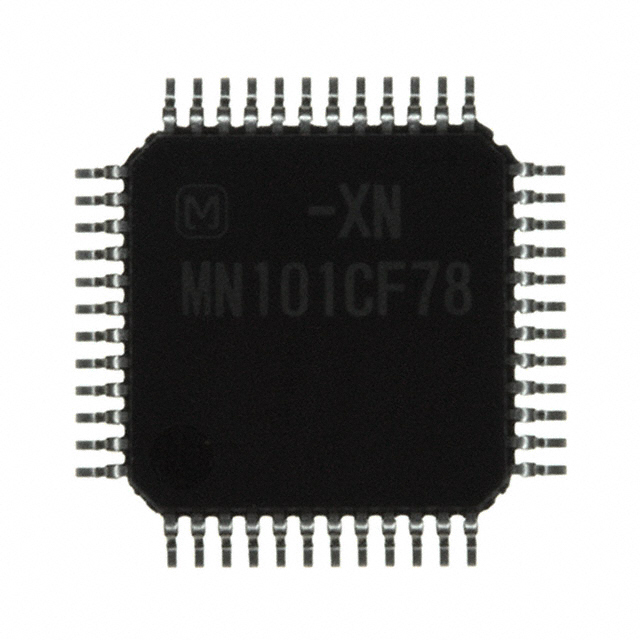

MN101CF78AXN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MN101CF78AXN with confidence from Components-World.HK, 1 Year Warranty
Dowload MN101CF78AXN Details in PDFSee Product Specifications for product details.
Buy MN101CF78AXN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MN101CF78AXN |
|---|---|
| Manufacturer | Panasonic |
| Description | IC MCU 8BIT 32KB FLASH 48TQFP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MN101CF78AXN | Manufacturer | Panasonic |
|---|---|---|---|
| Description | IC MCU 8BIT 32KB FLASH 48TQFP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4026 pcs | Data sheet | MN101C78A, F78A LSI Users ManualMN101CF78 Series Datasheet |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V |
| Supplier Device Package | 48-TQFP (7x7) | Speed | 8MHz |
| Series | AM1 | RAM Size | 1.5K x 8 |
| Program Memory Type | FLASH | Program Memory Size | 32KB (32K x 8) |
| Peripherals | LCD, PWM, WDT | Packaging | Tray |
| Package / Case | 48-TQFP | Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | Number of I/O | 39 |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| EEPROM Size | - | Detailed Description | MN101C AM1 Microcontroller IC 8-Bit 8MHz 32KB (32K x 8) FLASH 48-TQFP (7x7) |
| Data Converters | A/D 7x10b | Core Size | 8-Bit |
| Core Processor | MN101C | Connectivity | I²C, UART/USART |
| Base Part Number | MN101CF |
