ED3001/10-FD

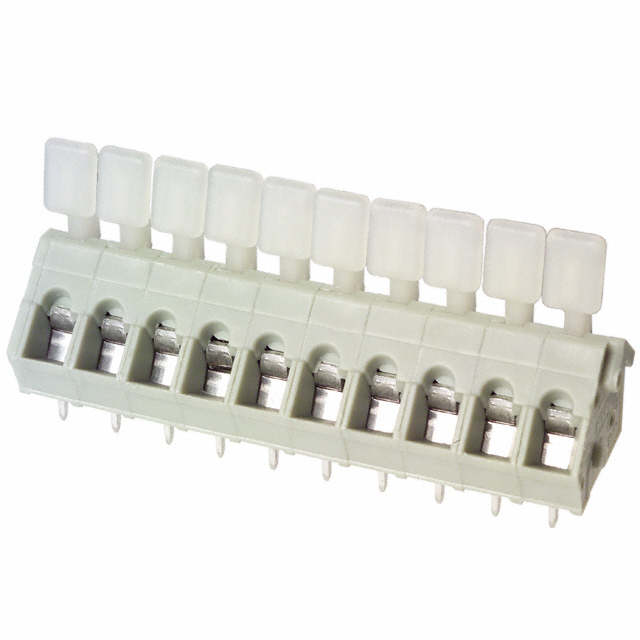

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ED3001/10-FD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ED3001/10-FD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ED3001/10-FD |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERMINAL BLOCK 5MM 10POS PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $1.238 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ED3001/10-FD | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERMINAL BLOCK 5MM 10POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26997 pcs | Data sheet | ED(Z)3001/x--FD |
| Category | Connectors, Interconnects | Wire Termination | Screwless - Leg Spring, Push-In Spring |
| Wire Gauge | 14-28 AWG | Voltage | 300V |
| Torque - Screw | - | Series | ED3001/FD |
| Screw Thread | - | Screw Material - Plating | - |
| Positions Per Level | 10 | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | ED2256 |
| Operating Temperature | -30°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | 45° (135°) Angle with Board | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA), Nylon |
| Features | Interlocking (Side), Lever Actuated | Detailed Description | 10 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole |
| Current | 16A | Contact Material - Plating | - |
| Color | Gray, Slate | Clamp Material - Plating | Copper |
