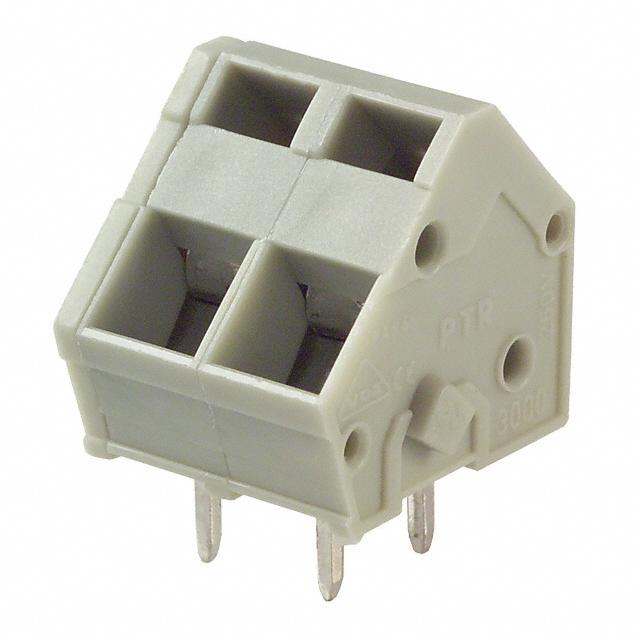

ED3000/2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ED3000/2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ED3000/2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ED3000/2 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | TERMINAL BLOCK 5MM 2POS PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.437 | $0.308 | $0.287 | $0.261 | $0.26 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.219 | $0.208 | $0.185 | $0.15 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ED3000/2 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERMINAL BLOCK 5MM 2POS PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 159229 pcs | Data sheet | ED(Z) 3000 |
| Category | Connectors, Interconnects | Wire Termination | Screwless - Leg Spring, Push-In Spring |
| Wire Gauge | 14-28 AWG | Voltage | 300V |
| Torque - Screw | - | Series | ED3000 |
| Screw Thread | - | Screw Material - Plating | - |
| Positions Per Level | 2 | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | ED2237 ED30002 |
| Operating Temperature | -30°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | 45° (135°) Angle with Board | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon | Features | Interlocking (Side) |
| Detailed Description | 2 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole | Current | 16A |
| Contact Material - Plating | - | Color | Gray, Slate |
| Clamp Material - Plating | Copper |
