Home > Products > Switches > Rocker Switches > GW12LCV

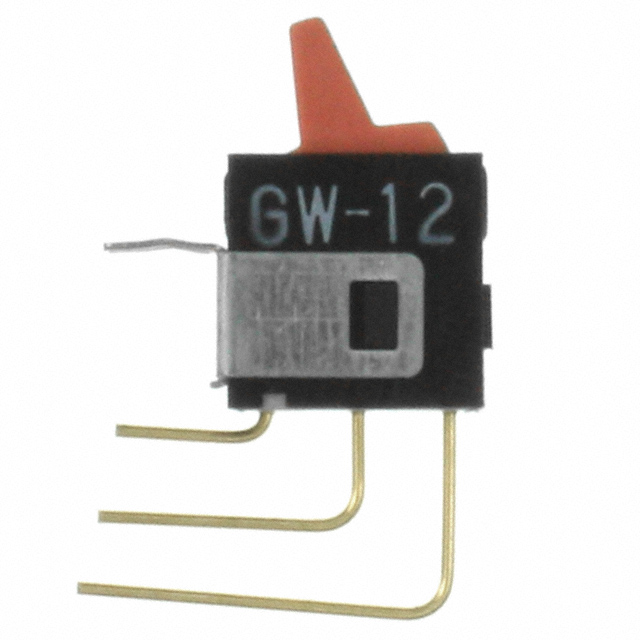

GW12LCV

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GW12LCV with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	GW12LCV
Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 54265 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.031	$0.987	$0.942	$0.897	$0.853
	$0.83	$0.785	$0.695	$0.673

Product parameter
Data sheet

Product parameter

Part Number	GW12LCV	Manufacturer	NKK Switches
Description	SWITCH ROCKER SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	54265 pcs	Data sheet	GW Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	PC Pin
Switch Function	On-On	Series	GW
Panel Cutout Dimensions	-	Packaging	Tray
Other Names	360-2800 GW12LCV-ND GW12LCV-RO GW12LCV-RO-ND	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole, Right Angle, Vertical	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Sealed - Flux Protection	Electrical Life	50,000 Cycles
Detailed Description	Rocker Switch SPDT 0.4VA (AC/DC) 28V Through Hole, Right Angle, Vertical	Current Rating	0.4VA (AC/DC)
Color - Actuator/Cap	Red	Circuit	SPDT
Actuator Type	Paddle	Actuator Marking	No Marking
