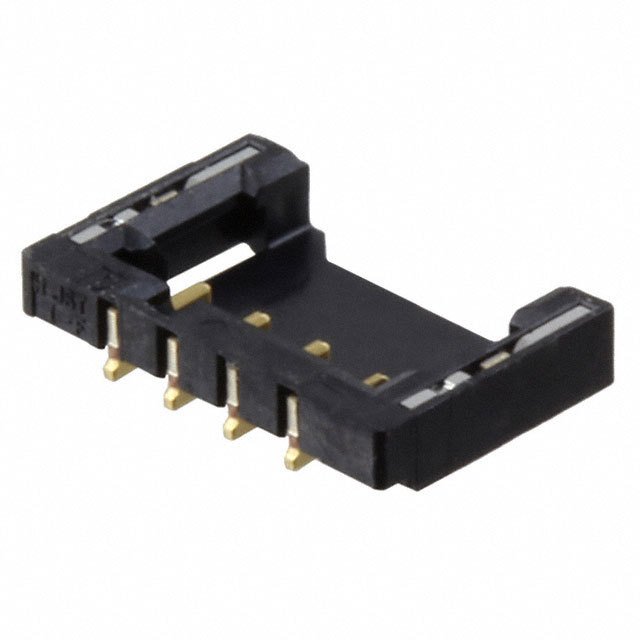

BM04B-ACHFKS-GACN-ETF(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BM04B-ACHFKS-GACN-ETF(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BM04B-ACHFKS-GACN-ETF(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BM04B-ACHFKS-GACN-ETF(LF)(SN) |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER ACHF SIDE 4POS 1.2MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 6000 pcs | 12000 pcs | |||
|---|---|---|---|---|---|
| $0.156 | $0.145 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | BM04B-ACHFKS-GACN-ETF(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER ACHF SIDE 4POS 1.2MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 149982 pcs | Data sheet | ACHF Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Series | ACHF |
| Row Spacing - Mating | - | Pitch - Mating | 0.047" (1.20mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 455-2920-2 BM04BACHFKSGACNETFLFSN |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polymer |
| Insulation Height | 0.056" (1.43mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount, Right Angle 4 position 0.047" (1.20mm) |
| Current Rating | 2.5A | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
