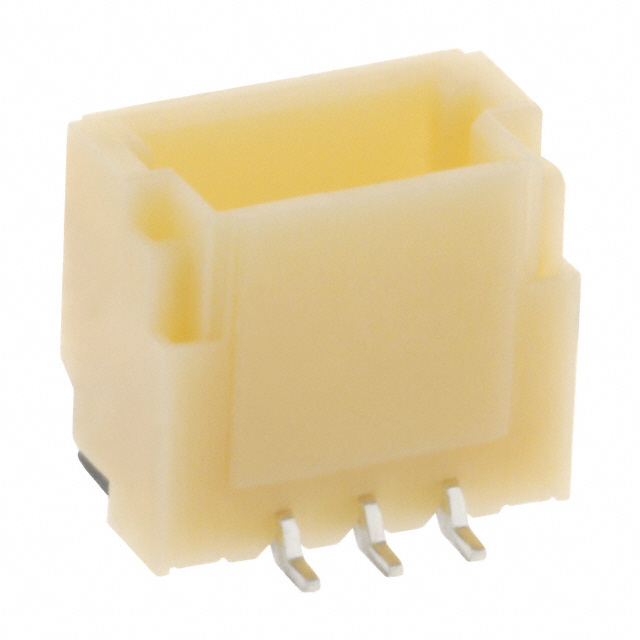

BM03B-SRSS-TB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BM03B-SRSS-TB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BM03B-SRSS-TB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BM03B-SRSS-TB |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER SH 3POS TOP 1MM TIN |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | BM03B-SRSS-TB | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER SH 3POS TOP 1MM TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5067 pcs | Data sheet | SR Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | SR |
| Row Spacing - Mating | - | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | 455-1407-1 BM03BSRSSTB |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 4.9mm | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.167" (4.25mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 3 position 0.039" (1.00mm) | Current Rating | 0.7A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Tin-Lead | Connector Type | Header |
| Applications | - |
