Home > Products > Switches > Snap Action, Limit Switches > V3L-3003-D8

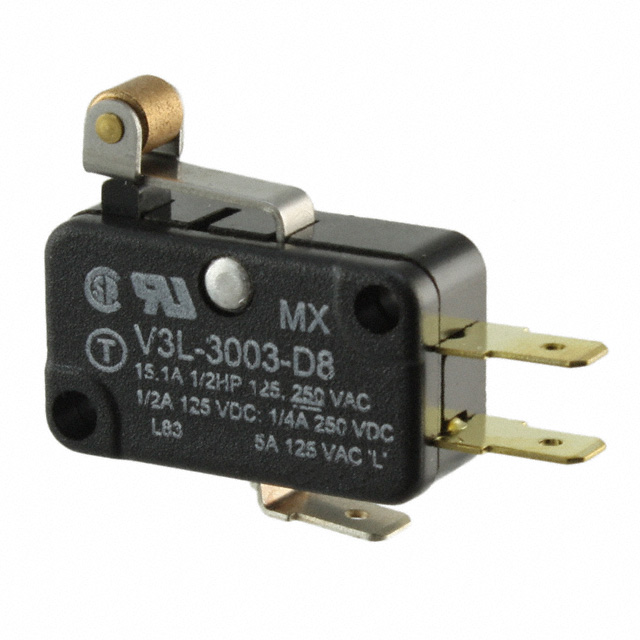

V3L-3003-D8

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy V3L-3003-D8 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	V3L-3003-D8
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 3081 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$17.991	$14.311	$13.409
	$12.83	$12.331	$11.744

Product parameter
Data sheet

Product parameter

Part Number	V3L-3003-D8	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3081 pcs	Data sheet	V3L-3003-D8 Drawing
Category	Switches	Voltage Rating - DC	125V
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.187" (4.7mm)
Switch Function	On-Mom	Series	V3L
Release Force	15gf	Pretravel	0.047" (1.2mm)
Packaging	Bulk	Overtravel	0.040" (1.0mm)
Other Names	480-5230 V3L-3003-D8-ND V3L3003D8	Operating Temperature	-
Operating Position	0.812" (20.6mm)	Operating Force	195gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Features	-	Electrical Life	-
Differential Travel	0.013" (0.33mm)	Current Rating	15A (AC), 500mA (DC)
Circuit	SPDT	Actuator Type	Lever, Roller
