Home > Products > Switches > Snap Action, Limit Switches > V3L-2436

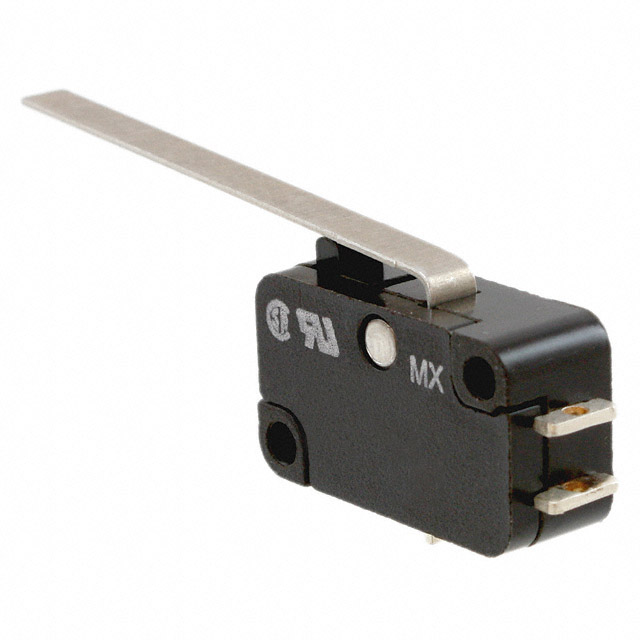

V3L-2436

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy V3L-2436 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	V3L-2436
Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs
~~In Stock~~ 6375 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$9.35	$7.438	$6.969	$6.668
	$6.408	$6.103	$5.889

Product parameter
Data sheet

Product parameter

Part Number	V3L-2436	Manufacturer	Honeywell Sensing and Productivity Solutions
Description	SWITCH SNAP ACTION SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6375 pcs	Data sheet	V3L-2436 Drawing
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Mom
Series	V3L	Release Force	-
Pretravel	0.200" (5.1mm)	Packaging	Bulk
Overtravel	0.160" (4.06mm)	Other Names	480-5228 V3L-2436-ND V3L2436
Operating Temperature	-	Operating Position	0.600" (15.2mm)
Operating Force	198gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Features	-
Electrical Life	-	Differential Travel	0.055" (1.4mm)
Current Rating	5A (AC)	Circuit	SPDT
Actuator Type	Lever, Straight
