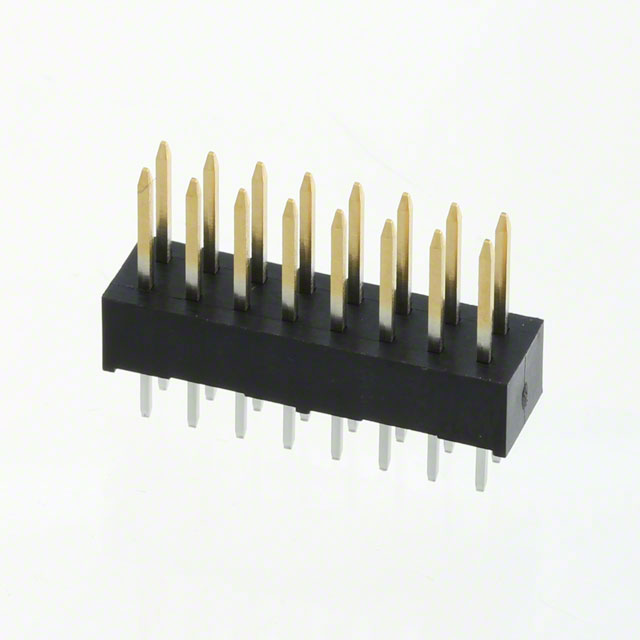

HIF3H-16PB-2.54DSA(71)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HIF3H-16PB-2.54DSA(71) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HIF3H-16PB-2.54DSA(71) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HIF3H-16PB-2.54DSA(71) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HDR 16POS 2.54MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 175 pcs | ||
|---|---|---|---|---|---|
| $1.169 | $1.122 | $0.935 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HIF3H-16PB-2.54DSA(71) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 16POS 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39019 pcs | Data sheet | HIF3H Series |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | HIF3H |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | 0.591" (15.00mm) |
| Other Names | 618-0203-5-71 H123871 HIF3H-16PB-2.54DSA(71)-ND |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.177" (4.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 16 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.276" (7.00mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
