628-W7W-220-012

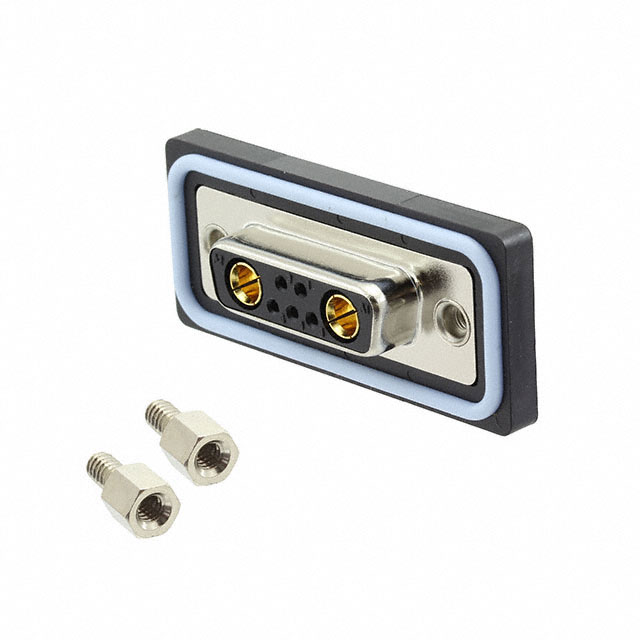

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 628-W7W-220-012 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 628-W7W-220-012 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 628-W7W-220-012 |
|---|---|
| Manufacturer | EDAC Inc. |
| Description | CONN DSUB RCPT 7POS PNL MNT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.83 | $4.389 | $4.28 | $3.95 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.731 | $3.402 | $3.182 | $2.919 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 628-W7W-220-012 | Manufacturer | EDAC Inc. |
|---|---|---|---|
| Description | CONN DSUB RCPT 7POS PNL MNT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11710 pcs | Data sheet | 627,28 Series 7W DatasheetInterconnect Solutions Brochure628-W7W-220-012 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 | Shell Material, Finish | Steel, Nickel Plated |
| Series | 600W | Packaging | Bulk |
| Other Names | 151-1229 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 7 (5 + 2 Power) |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | - | Detailed Description | 7 (5 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal and Power |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, Combo |
| Color | Black | Backset Spacing | - |
