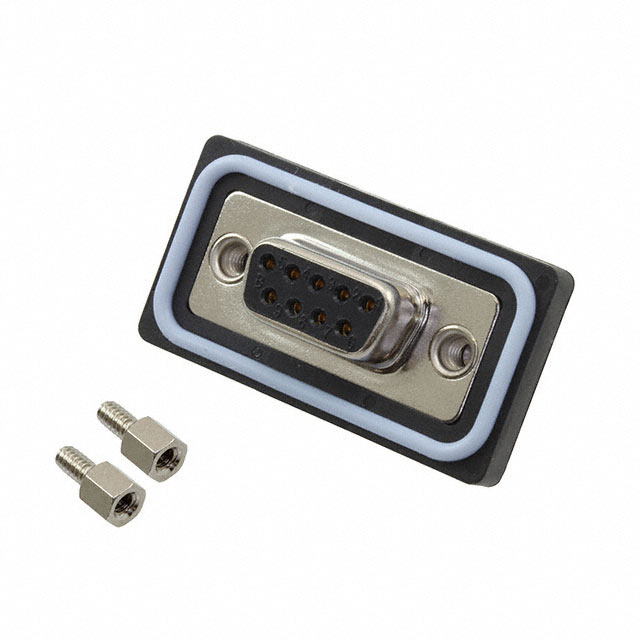

628-W09-220-012
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 628-W09-220-012 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 628-W09-220-012 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 628-W09-220-012 |
|---|---|
| Manufacturer | EDAC Inc. |
| Description | CONN DSUB RCPT 9POS PNL MNT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.83 | $3.665 | $3.331 | $3.165 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.082 | $2.748 | $2.582 | $2.282 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 628-W09-220-012 | Manufacturer | EDAC Inc. |
|---|---|---|---|
| Description | CONN DSUB RCPT 9POS PNL MNT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15380 pcs | Data sheet | Interconnect Solutions Brochure628-W09-220-012 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Nickel Plated |
| Series | 600W | Packaging | Bulk |
| Other Names | 151-1213 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | - | Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
