NCP4545IMNTWG

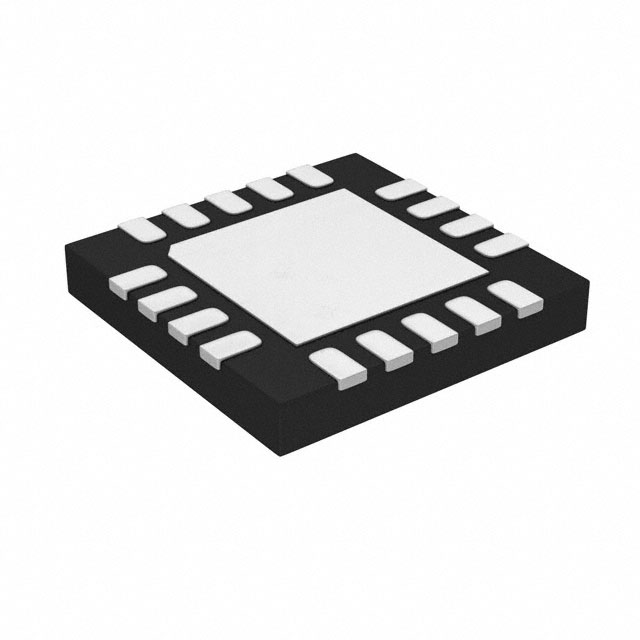

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP4545IMNTWG with confidence from Components-World.HK, 1 Year Warranty
Dowload NCP4545IMNTWG Details in PDFSee Product Specifications for product details.
Buy NCP4545IMNTWG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NCP4545IMNTWG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC LOAD SWITCH 10.5A 18QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | ||
|---|---|---|---|---|---|
| $0.156 | $0.148 | $0.143 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | NCP4545IMNTWG | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC LOAD SWITCH 10.5A 18QFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 158037 pcs | Data sheet | NCP4545 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | Not Required |
| Voltage - Load | 3 V ~ 5.5 V | Switch Type | General Purpose |
| Supplier Device Package | 18-QFN (3x3) | Series | ecoSWITCH™ |
| Rds On (Typ) | 4.9 mOhm | Ratio - Input:Output | 1:1 |
| Packaging | Tape & Reel (TR) | Package / Case | 18-VFQFN Exposed Pad |
| Output Type | N-Channel | Output Configuration | High Side |
| Other Names | NCP4545IMNTWG-ND NCP4545IMNTWGOSTR |
Operating Temperature | 0°C ~ 70°C (TA) |
| Number of Outputs | 1 | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | On/Off | Input Type | Non-Inverting |
| Features | Slew Rate Controlled | Fault Protection | - |
| Current - Output (Max) | 10.5A |
