SDS60UQ01

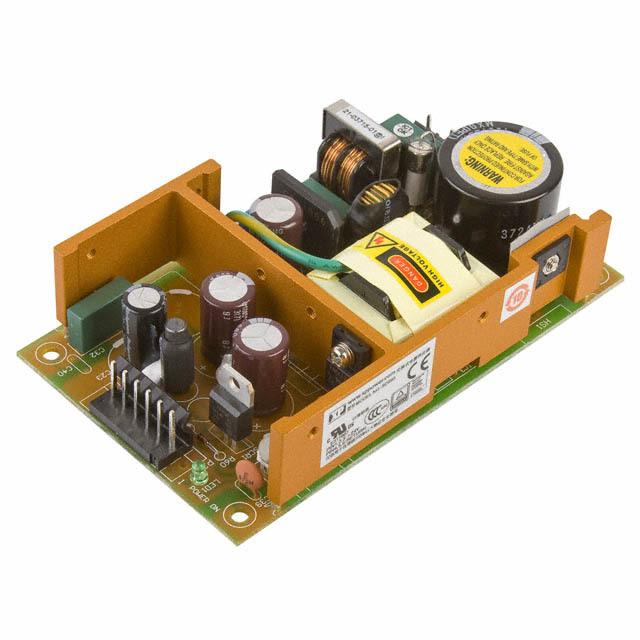

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SDS60UQ01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SDS60UQ01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SDS60UQ01 |
|---|---|
| Manufacturer | XP Power |
| Description | AC/DC CNVRTR 3.3V +/-12V 5V 60W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $27.594 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SDS60UQ01 | Manufacturer | XP Power |
|---|---|---|---|
| Description | AC/DC CNVRTR 3.3V +/-12V 5V 60W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1397 pcs | Data sheet | SDS Series, 60 W Datasheet |
| Category | Power Supplies - External/Internal (Off-Board) | Voltage - Output 4 | 5V |
| Voltage - Output 3 | -12V | Voltage - Output 2 | 12V |
| Voltage - Output 1 | 3.3V | Voltage - Isolation | 3kV |
| Voltage - Input | 90 ~ 264 VAC | Type | Open Frame |
| Size / Dimension | 5.00" L x 3.00" W x 1.20" H (127.0mm x 76.2mm x 30.5mm) | Series | SDS |
| Power (Watts) | 60W | Operating Temperature | 0°C ~ 70°C (With Derating) |
| Number of Outputs | 4 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Minimum Load Required | Yes |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Adjustable Output, DC Input Capable, Universal Input | Efficiency | 80% |
| Detailed Description | Open Frame AC DC Converter 4 Output 3.3V 12V -12V 5V 6A, 3A, 800mA, 800mA 90 ~ 264 VAC Input | Current - Output (Max) | 6A, 3A, 800mA, 800mA |
| Approvals | - | Applications | ITE (Commercial) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
