7448680200

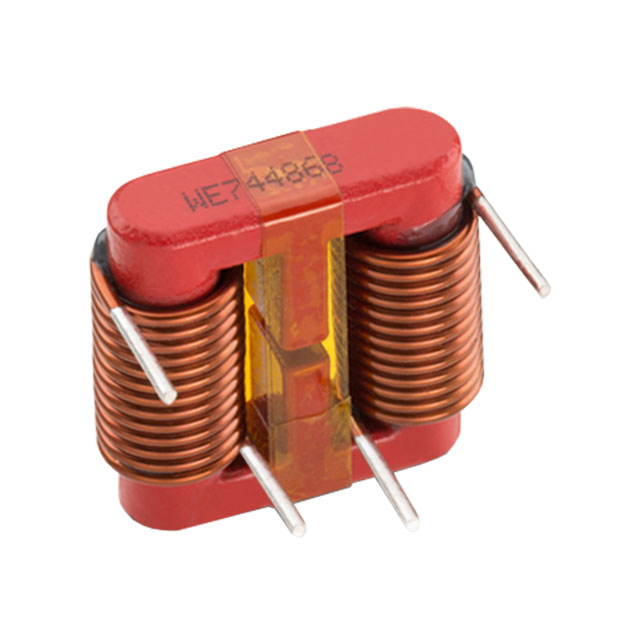

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7448680200 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 7448680200 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 7448680200 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | CMC 120UH 23.5A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | 250 pcs | 500 pcs |
|---|---|---|---|---|---|
| $2.62 | $2.357 | $2.095 | $1.921 | $1.746 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 7448680200 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CMC 120UH 23.5A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19540 pcs | Data sheet | 7448680200 Drawing |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 1.083" L x 0.984" W (27.51mm x 24.99mm) |
| Series | WE-LPCC | Ratings | - |
| Package / Case | Horizontal, 4 PC Pad | Other Names | 732-11545 732-11545-1 732-11545-1-ND |
| Operating Temperature | -40°C ~ 115°C | Number of Lines | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 120µH @ 10kHz | Height (Max) | 0.472" (11.99mm) |
| Filter Type | Power Line | Features | - |
| Detailed Description | 120µH @ 10kHz 2 Line Common Mode Choke Through Hole 23.5A DCR 1.4 mOhm | DC Resistance (DCR) (Max) | 1.4 mOhm |
| Current Rating (Max) | 23.5A | Approvals | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
