7448013501

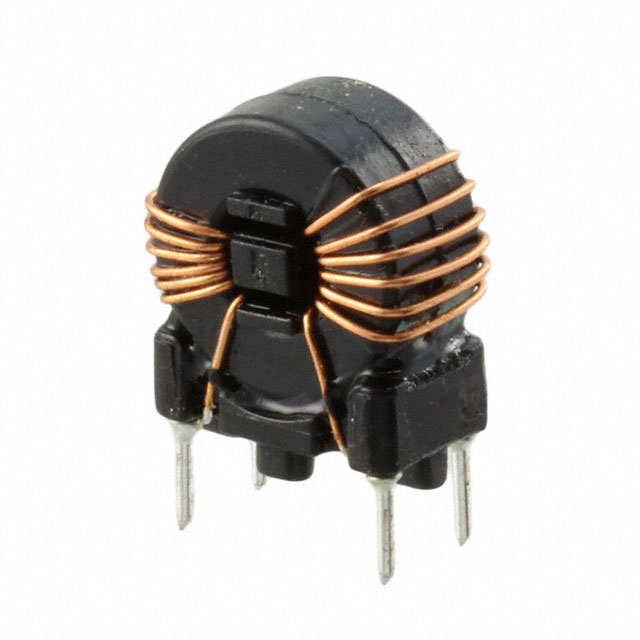

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 7448013501 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 7448013501 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 7448013501 |
|---|---|
| Manufacturer | Wurth Electronics |
| Description | CMC 500UH 3.5A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 250 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $3.396 | $2.981 | $2.703 | $2.067 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 7448013501 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | CMC 500UH 3.5A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16694 pcs | Data sheet | 7448013501 Drawing |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 0.591" L x 0.295" W (15.00mm x 7.50mm) |
| Series | WE-CMBNC | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | 732-5579 | Operating Temperature | -40°C ~ 125°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 500µH @ 10kHz |
| Height (Max) | 0.630" (16.00mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 500µH @ 10kHz 2 Line Common Mode Choke Through Hole 3.5A DCR 33 mOhm |
| DC Resistance (DCR) (Max) | 33 mOhm | Current Rating (Max) | 3.5A |
| Approvals | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
