Home > Products > Connectors, Interconnects > Terminal Blocks - Wire to Board > 691412220003M

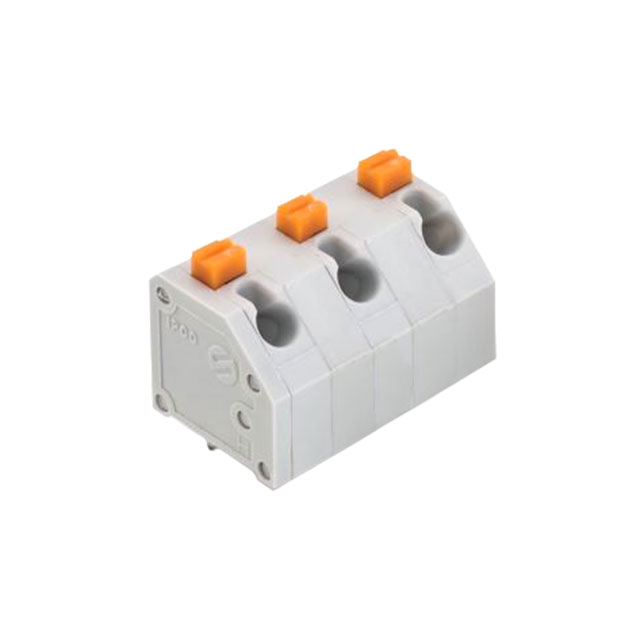

691412220003M

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 691412220003M with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	691412220003M
Manufacturer	Wurth Electronics
Description	TERM BLOCK 3POS 45DEG 7MM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 84881 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	50 pcs	100 pcs	500 pcs
Reference Price (In US Dollars)	$0.65	$0.571	$0.517	$0.462	$0.434

Product parameter
Data sheet

Product parameter

Part Number	691412220003M	Manufacturer	Wurth Electronics
Description	TERM BLOCK 3POS 45DEG 7MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	84881 pcs	Data sheet	691412220003M Drawing
Category	Connectors, Interconnects	Wire Termination	Screwless
Wire Gauge	16-30 AWG	Voltage	300V
Torque - Screw	-	Series	WR-TBL Series 4122
Screw Thread	-	Screw Material - Plating	-
Positions Per Level	3	Pitch	0.276" (7.00mm)
Packaging	Bulk	Other Names	732-11115
Operating Temperature	-	Number of Levels	1
Mounting Type	Through Hole, Kinked Pin	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Orientation	45° (135°) Angle with Board	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polyamide (PA66), Nylon 6/6
Features	-	Detailed Description	3 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.276" (7.00mm) Through Hole, Kinked Pin
Current	4A	Contact Material - Plating	Phosphor Bronze - Tin Plated
Color	Gray	Clamp Material - Plating	Phosphor Bronze

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
