1636990000

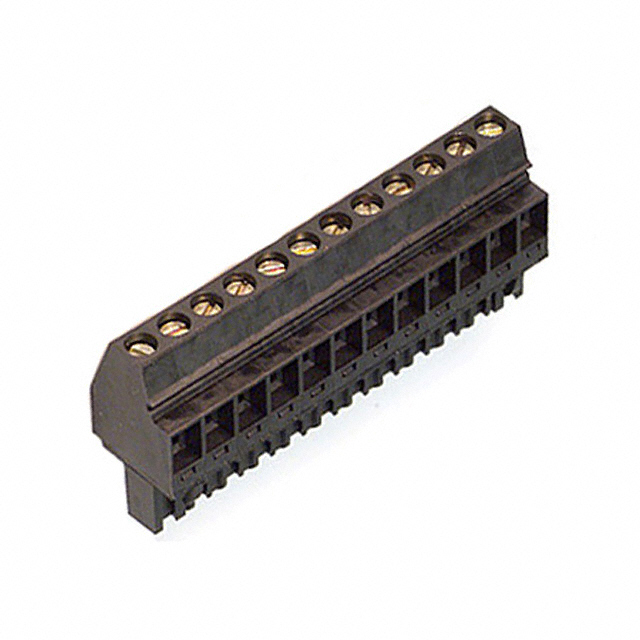

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1636990000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1636990000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1636990000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK PLUG 12POS 90DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1636990000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK PLUG 12POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3964 pcs | Data sheet | 1636990000 |
| Category | Connectors, Interconnects | Wire Strip Length | 7mm |
| Wire Gauge or Range - mm² | 0.5-2.5mm² | Wire Gauge or Range - AWG | 12-26 AWG |
| Voltage - UL | 300V | Voltage - IEC | 400V |
| Type | Plug, Female Sockets | Torque - Screw | 0.4-0.5 Nm (3.5-4.4 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | Omnimate BL |
| Screw Size | M2.5 | Positions Per Level | 12 |
| Plug Wire Entry | 90° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 163699 281-1195 BLZ 5.00/90/12 BK |
| Operating Temperature | -50°C ~ 100°C | Number of Positions | 12 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.059" (26.90mm) | Ingress Protection | IP20 |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | - |
| Features | Retention Latches (Wire Side) | Detailed Description | 12 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line) |
| Current - UL | 10A | Current - IEC | 15A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
