1597420000

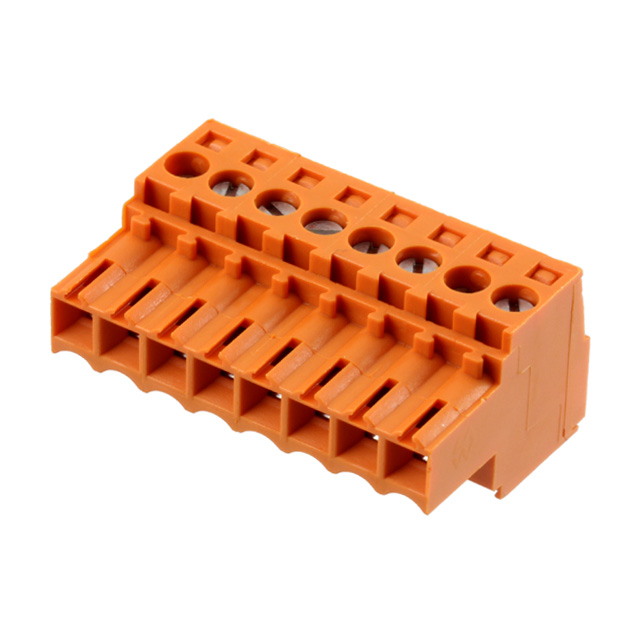

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1597420000 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1597420000 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1597420000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | TERM BLOCK PLUG 8POS STR 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.637 | $3.114 | $2.972 | $2.672 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.529 | $2.292 | $2.134 | $2.016 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1597420000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK PLUG 8POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15259 pcs | Data sheet | 1597420000OMNIMATE Catalog |
| Category | Connectors, Interconnects | Wire Strip Length | 6mm |
| Wire Gauge or Range - mm² | 0.2-1.5mm² | Wire Gauge or Range - AWG | 14-28 AWG |
| Voltage - UL | 300V | Voltage - IEC | 320V |
| Type | Plug, Female Sockets | Torque - Screw | 0.2-0.25 Nm (1.7-2.2 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | Omnimate BL |
| Screw Size | M2 | Positions Per Level | 8 |
| Plug Wire Entry | 180° | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 1597420000-ND 281-3207 BL 3.5/8 SN OR BL 3.50/08/180 SN OR BX |
| Operating Temperature | -50°C ~ 100°C | Number of Positions | 8 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.512" (13.00mm) |
| Ingress Protection | IP20 | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | - | Features | - |
| Detailed Description | 8 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) | Current - UL | 10A |
| Current - IEC | 17A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Orange |
