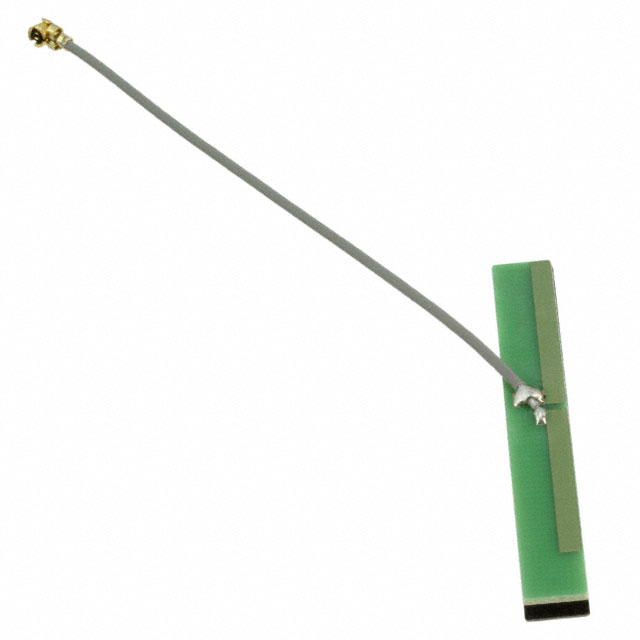

RFPCA500609IMAB301
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RFPCA500609IMAB301 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RFPCA500609IMAB301 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RFPCA500609IMAB301 |
|---|---|
| Manufacturer | Walsin Technology |
| Description | RF ANT 2.4GHZ PCB TRACE IPEX MAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.665 | $1.485 | $1.337 | $1.218 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.099 | $0.986 | $0.832 | $0.79 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RFPCA500609IMAB301 | Manufacturer | Walsin Technology |
|---|---|---|---|
| Description | RF ANT 2.4GHZ PCB TRACE IPEX MAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49571 pcs | Data sheet | RFPCA500609IMAB301 Approval Sheet~ |
| Category | RF/IF and RFID | VSWR | 2 |
| Termination | Connector, IPEX Male | Series | - |
| Return Loss | -10dB | Power - Max | 1W |
| Packaging | Bulk | Other Names | 1292-1094 |
| Number of Bands | 1 | Mounting Type | Adhesive |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Height (Max) | 0.087" (2.20mm) | Gain | 4.5dBi |
| Frequency Range | 2.4GHz ~ 2.5GHz | Frequency Group | UHF (2 GHz ~ 3 GHz) |
| Frequency (Center/Band) | 2.4GHz | Features | - |
| Detailed Description | 2.4GHz PCB Trace RF Antenna 2.4GHz ~ 2.5GHz 4.5dBi Connector, IPEX Male Adhesive | Applications | - |
| Antenna Type | PCB Trace |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
