8024

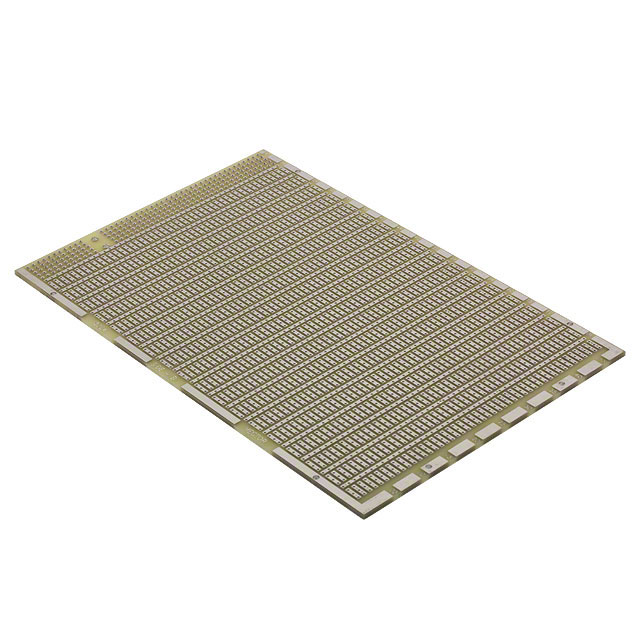

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 8024 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 8024 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 8024 |
|---|---|
| Manufacturer | Vector Electronics & Technology, Inc. |
| Description | PLUGBOARD HARD METRIC PTH |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $7.312 | $7.107 | $6.702 | $6.498 | ||
| 50 pcs | 100 pcs | 250 pcs | 500 pcs | ||
| $6.092 | $5.889 | $5.483 | $5.28 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 8024 | Manufacturer | Vector Electronics & Technology, Inc. |
|---|---|---|---|
| Description | PLUGBOARD HARD METRIC PTH | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 7363 pcs | Data sheet | 1MM/2MM Hard Metric Plugbords |
| Category | Prototyping, Fabrication Products | Size / Dimension | 6.30" L x 3.94" W (160.0mm x 100.1mm) |
| Series | Vectorbord® Plugbord™ | Proto Board Type | Plugboard, Hard Metric |
| Plating | Plated Through Hole (PTH) | Pitch | 0.079" (2.00mm) |
| Other Names | V1255 | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material | - | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Not applicable / Not applicable | Hole Diameter | 0.025" (0.64mm) |
| Edge Contacts | - | Detailed Description | Plugboard, Hard Metric Plated Through Hole (PTH) 3 Hole Pad (Both Sides) 0.079" (2.00mm) |
| Circuit Pattern | 3 Hole Pad (Both Sides) | Board Thickness | 0.062" (1.57mm) 1/16" |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
