MET-59-T

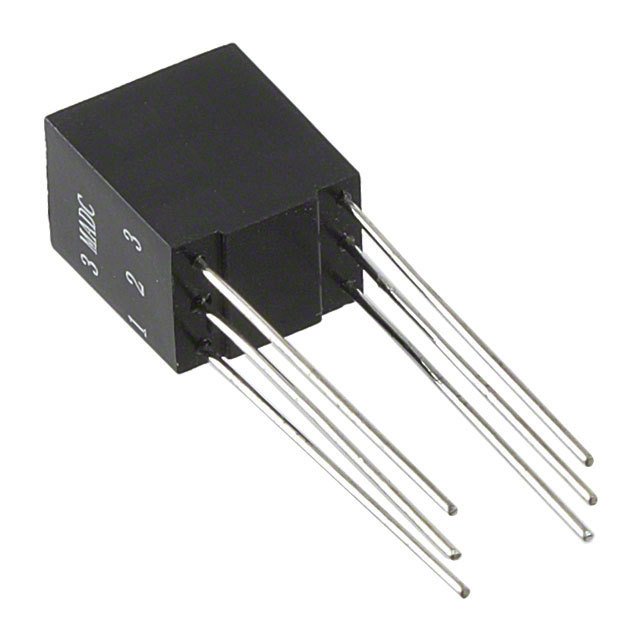

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MET-59-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MET-59-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MET-59-T |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | AUDIO XFMR 600/150:150 THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.047 | $3.099 | $2.625 | $2.582 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.453 | $2.427 | $2.393 | $2.367 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MET-59-T | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | AUDIO XFMR 600/150:150 THRU HOLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14319 pcs | Data sheet | MET-59-T Datasheet |
| Category | Transformers | Weight | - |
| Voltage - Isolation | 1000VRMS @ 1 Second | Turns Ratio - Primary:Secondary | 2:1:1 |
| Transformer Type | Audio Coupling | Termination Style | PC Pin |
| Size / Dimension | 0.409" L x 0.310" W (10.40mm x 7.87mm) | Series | MET |
| Return Loss | - | Power Level | 50mW |
| Packaging | Bulk | Other Names | 237-2022 MET-59-T-B |
| Operating Temperature | -20°C ~ 85°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Impedance - Secondary (Ohms) | 150/150 | Impedance - Primary (Ohms) | 600 |
| Height - Seated (Max) | 0.465" (11.80mm) | Frequency Response | ±2dB |
| Frequency Range | 300Hz ~ 100kHz | DC Resistance (DCR) - Secondary | 95 Ohm |
| DC Resistance (DCR) - Primary | 70 Ohm | Approvals | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
