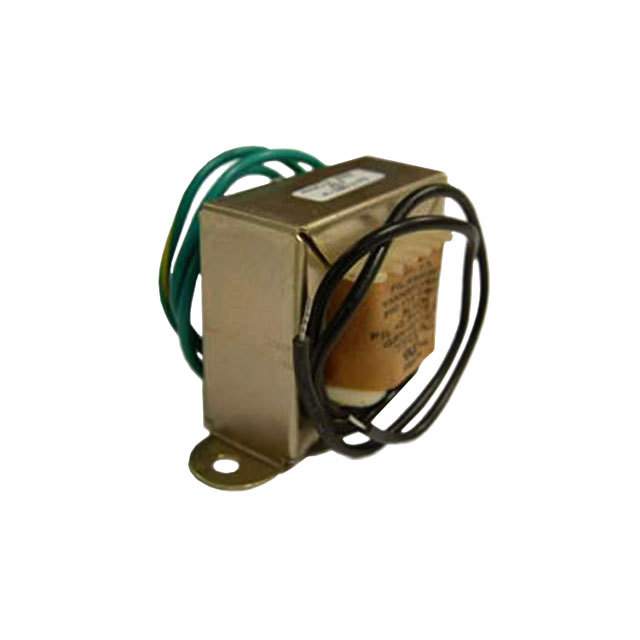

F-16X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy F-16X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy F-16X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | F-16X |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | POWER XFMR CHASSIS MOUNT W/LEADS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.636 | $3.424 | $3.16 | $3.055 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.971 | $2.929 | $2.897 | $2.844 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | F-16X | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | POWER XFMR CHASSIS MOUNT W/LEADS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11449 pcs | Data sheet | F-16X Datasheet |
| Category | Transformers | Weight | 1.3 lbs (589.7g) |
| Voltage - Secondary (Full Load) | 6.3V | Voltage - Primary | 115V |
| Voltage - Isolation | 2500Vrms | Type | Laminated Core |
| Termination Style | Wire Leads | Size / Dimension | 84.12mm L x 50.80mm W |
| Series | Single Secondary | Secondary Winding(s) | Single |
| Primary Winding(s) | Single | Power - Max | 18.9 VA |
| Other Names | 237-1923 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 49.20mm |
| Current - Output (Max) | 3A | Center Tap | Yes |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
