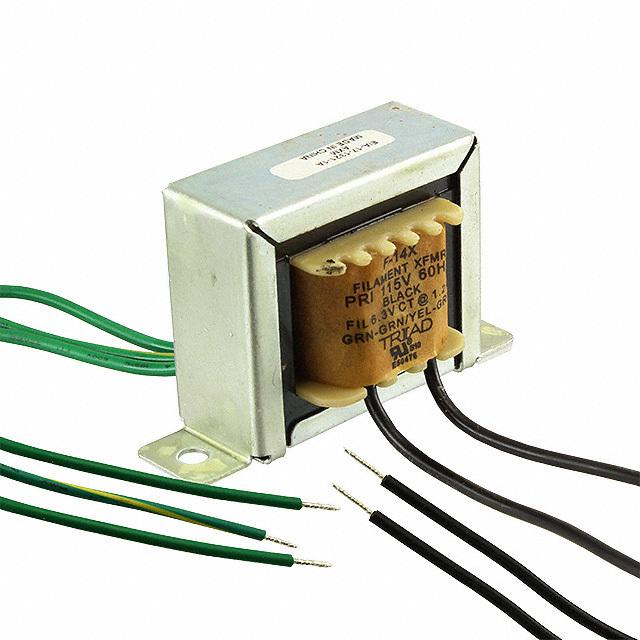

F-14X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy F-14X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy F-14X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | F-14X |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | POWER XFMR CHASSIS MOUNT W/LEADS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.018 | $2.969 | $2.741 | $2.649 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.576 | $2.54 | $2.512 | $2.467 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | F-14X | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | POWER XFMR CHASSIS MOUNT W/LEADS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13900 pcs | Data sheet | F-14X Datasheet |
| Category | Transformers | Weight | 0.7 lb (317.51g) |
| Voltage - Secondary (Full Load) | 6.3V | Voltage - Primary | 115V |
| Voltage - Isolation | 2500Vrms | Type | Laminated Core |
| Termination Style | Wire Leads | Size / Dimension | 71.42mm L x 41.28mm W |
| Series | Single Secondary | Secondary Winding(s) | Single |
| Primary Winding(s) | Single | Power - Max | 7.56 VA |
| Other Names | 237-1917 | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 41.28mm |
| Current - Output (Max) | 1.2A | Center Tap | Yes |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
