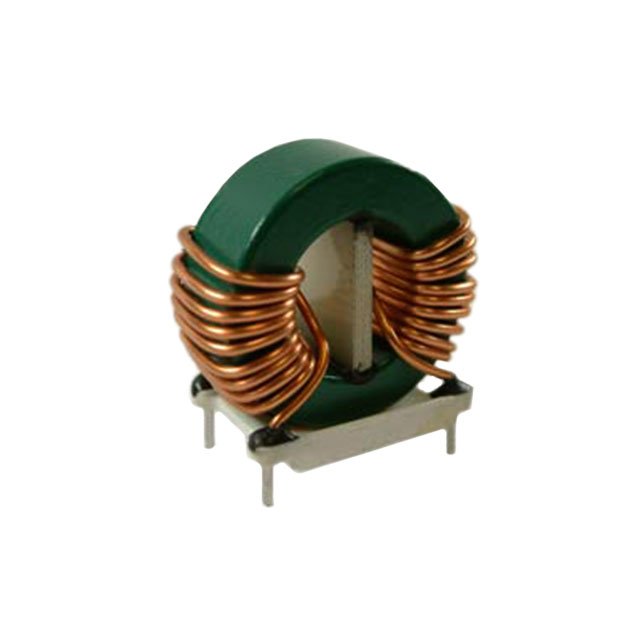

CMT-8121-B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CMT-8121-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CMT-8121-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CMT-8121-B |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | COMMON MODE CHOKE 1MH 20A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 90 pcs | ||||
|---|---|---|---|---|---|
| $1.992 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CMT-8121-B | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | COMMON MODE CHOKE 1MH 20A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19475 pcs | Data sheet | CMT-8121 |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 1.700" L x 0.900" W (43.18mm x 22.86mm) |
| Series | CMT | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Operating Temperature | -55°C ~ 105°C | Number of Lines | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 1mH @ 1kHz | Height (Max) | 1.650" (41.91mm) |
| Filter Type | Power Line | Features | ESD |
| Detailed Description | 1mH @ 1kHz 2 Line Common Mode Choke Through Hole 20A DCR 7 mOhm | DC Resistance (DCR) (Max) | 7 mOhm |
| Current Rating (Max) | 20A | Approvals | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
