CMT-8116

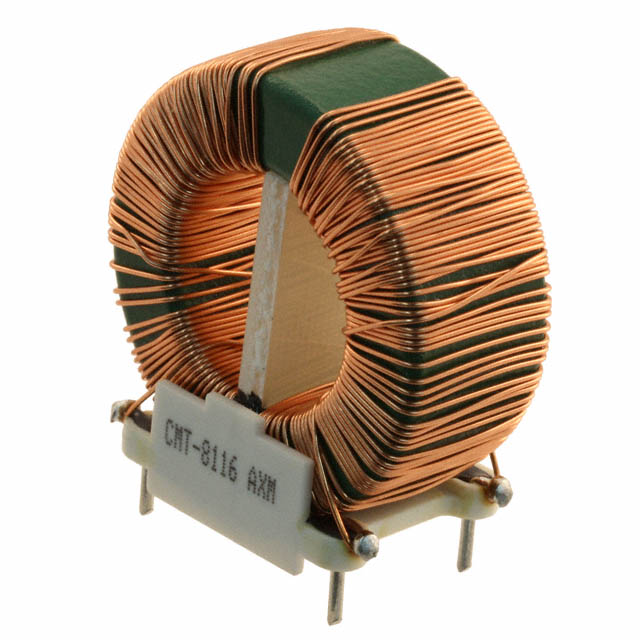

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CMT-8116 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CMT-8116 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CMT-8116 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CMC 50MH 2.3A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $2.929 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CMT-8116 | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | CMC 50MH 2.3A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11093 pcs | Data sheet | CMT-8116 |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 1.550" L x 0.800" W (39.37mm x 20.32mm) |
| Series | CMT | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | 237-1374 CMT8116 |
Operating Temperature | -55°C ~ 105°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 50mH @ 1kHz |
| Height (Max) | 1.650" (41.91mm) | Filter Type | Power Line |
| Features | ESD | Detailed Description | 50mH @ 1kHz 2 Line Common Mode Choke Through Hole 2.3A DCR 450 mOhm |
| DC Resistance (DCR) (Max) | 450 mOhm | Current Rating (Max) | 2.3A |
| Approvals | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
