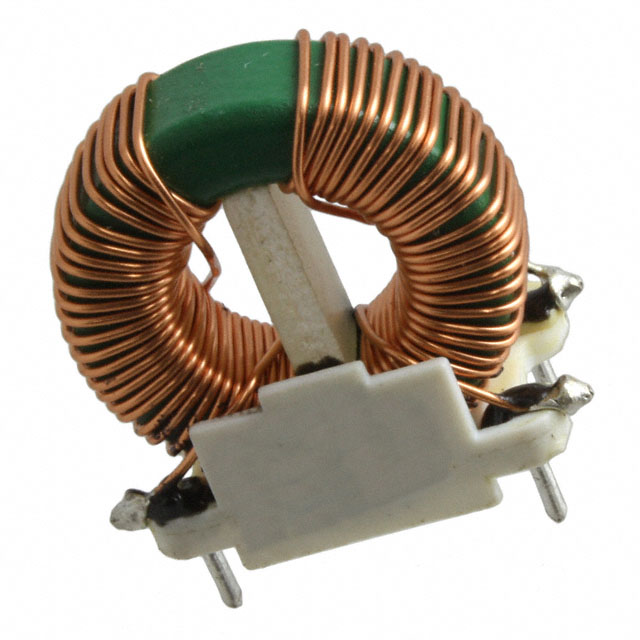

CMT-8106
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CMT-8106 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CMT-8106 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CMT-8106 |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CMC 5MH 3.7A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $2.249 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CMT-8106 | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | CMC 5MH 3.7A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17418 pcs | Data sheet | CMT-8106 |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 1.200" L x 0.600" W (30.48mm x 15.24mm) |
| Series | CMT | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | 237-1380 CMT8106 |
Operating Temperature | -55°C ~ 105°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 5mH @ 1kHz |
| Height (Max) | 1.200" (30.48mm) | Filter Type | Power Line |
| Features | ESD | Detailed Description | 5mH @ 1kHz 2 Line Common Mode Choke Through Hole 3.7A DCR 70 mOhm |
| DC Resistance (DCR) (Max) | 70 mOhm | Current Rating (Max) | 3.7A |
| Approvals | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
