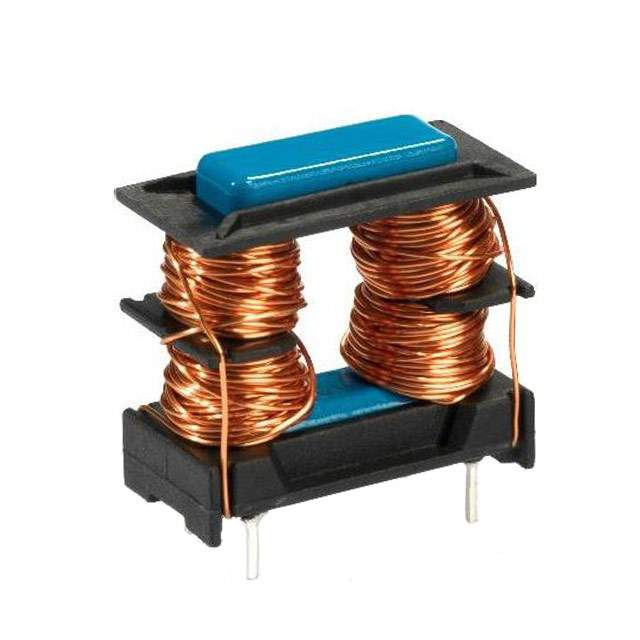

CMF23V-104700-B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CMF23V-104700-B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CMF23V-104700-B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CMF23V-104700-B |
|---|---|
| Manufacturer | Triad Magnetics |
| Description | CMC 100MH 700MA 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.113 | $1.028 | $0.72 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.583 | $0.531 | $0.514 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CMF23V-104700-B | Manufacturer | Triad Magnetics |
|---|---|---|---|
| Description | CMC 100MH 700MA 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60920 pcs | Data sheet | CMF Series, Dual-Function Chokes Prod InfoCMF23V-104700 Datasheet |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 300V | Size / Dimension | 1.142" L x 0.591" W (29.00mm x 15.00mm) |
| Series | CMF | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | 237-2287 | Operating Temperature | -40°C ~ 105°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 100mH @ 10kHz |
| Height (Max) | 1.063" (27.00mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 100mH @ 10kHz 2 Line Common Mode Choke Through Hole 700mA DCR 1.99 Ohm |
| DC Resistance (DCR) (Max) | 1.99 Ohm | Current Rating (Max) | 700mA |
| Approvals | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
