SSM3J15CT(TPL3)

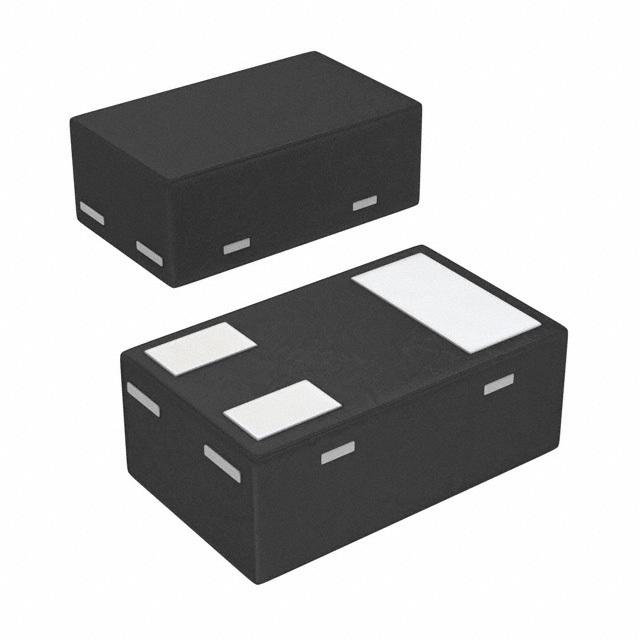

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SSM3J15CT(TPL3) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SSM3J15CT(TPL3) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SSM3J15CT(TPL3) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | MOSFET P-CH 30V 0.1A CST3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.168 | $0.121 | $0.071 | $0.04 | $0.031 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SSM3J15CT(TPL3) | Manufacturer | Toshiba Semiconductor and Storage |
|---|---|---|---|
| Description | MOSFET P-CH 30V 0.1A CST3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 775370 pcs | Data sheet | SSM3J15CT |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | - |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | CST3 | Series | π-MOSVI |
| Rds On (Max) @ Id, Vgs | 12 Ohm @ 10mA, 4V | Power Dissipation (Max) | 100mW (Ta) |
| Packaging | Cut Tape (CT) | Package / Case | SC-101, SOT-883 |
| Other Names | SSM3J15CT(TPL3)CT SSM3J15CTL3FCT SSM3J15CTL3FCT-ND |
Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 9.1pF @ 3V |
| FET Type | P-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | P-Channel 30V 100mA (Ta) 100mW (Ta) Surface Mount CST3 | Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
