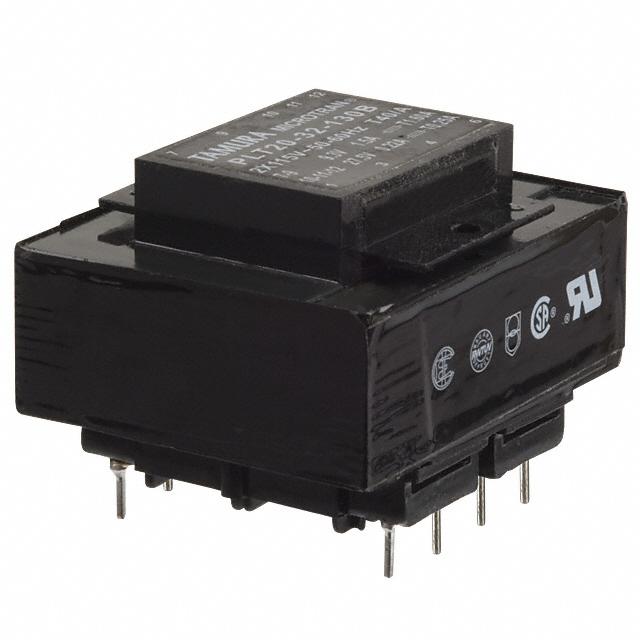

PLT20-32-130B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PLT20-32-130B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PLT20-32-130B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PLT20-32-130B |
|---|---|
| Manufacturer | Tamura |
| Description | XFRMR LAMINATED 20VA THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.505 | $4.956 | $4.568 | $4.414 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.336 | $4.181 | $4.026 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PLT20-32-130B | Manufacturer | Tamura |
|---|---|---|---|
| Description | XFRMR LAMINATED 20VA THRU HOLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9471 pcs | Data sheet | PLT20-32 Drawing |
| Category | Transformers | Weight | - |
| Voltage - Secondary (Full Load) | Parallel 9.3V, Series 27.5V | Voltage - Primary | 115V, 230V |
| Voltage - Isolation | 3500Vrms | Type | Laminated Core |
| Termination Style | PC Pin | Size / Dimension | 57.20mm L x 47.60mm W |
| Series | - | Secondary Winding(s) | Dual |
| Primary Winding(s) | Dual | Power - Max | 20 VA |
| Other Names | MT3143 PLT20-32 PLT20-32(BOX) PLT20-32(BULK) PLT2032130B |
Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 26 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 41.38mm |
| Current - Output (Max) | Parallel 220mA, Series 1.5A | Center Tap | Yes |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
