NS12575T150MN

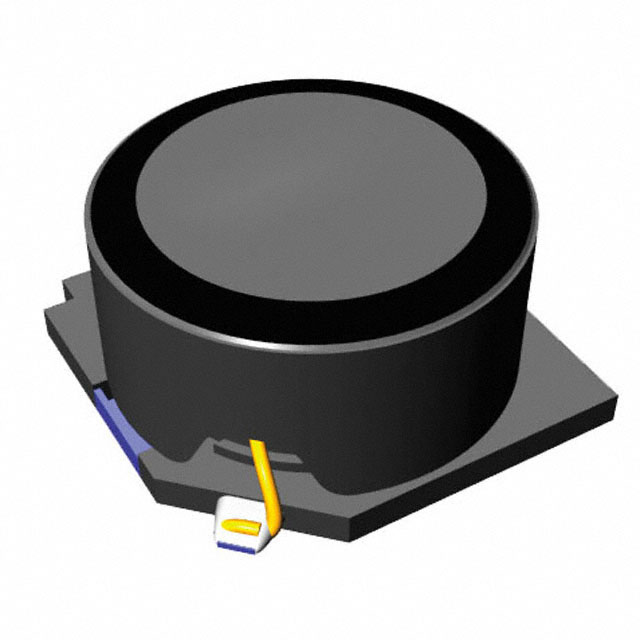

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NS12575T150MN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NS12575T150MN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NS12575T150MN |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | FIXED IND 15UH 5.22A 22.08 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | 12500 pcs |
|---|---|---|---|---|---|
| $0.275 | $0.244 | $0.236 | $0.229 | $0.221 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | NS12575T150MN | Manufacturer | Taiyo Yuden |
|---|---|---|---|
| Description | FIXED IND 15UH 5.22A 22.08 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91703 pcs | Data sheet | NS Series CatalogNS12575T150MN SpecNS12575 Series Specification |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Shielding | Shielded |
| Series | NS | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 587-2759-2 LM NS 12575T 150MN |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 15µH |
| Height - Seated (Max) | 0.309" (7.85mm) | Frequency - Self Resonant | 14MHz |
| Detailed Description | 15µH Shielded Wirewound Inductor 5.22A 22.08 mOhm Max Nonstandard | DC Resistance (DCR) | 22.08 mOhm Max |
| Current Rating | 5.22A | Current - Saturation | 6.54A |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
