Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > S1GFS MXG

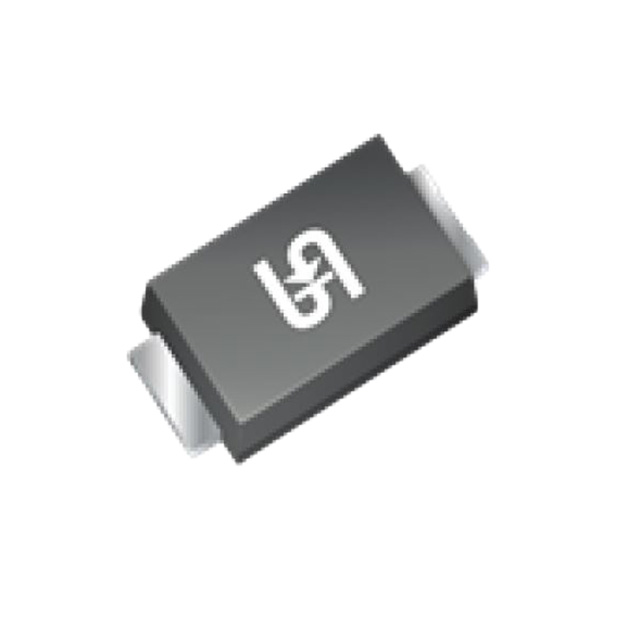

S1GFS MXG

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S1GFS MXG with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	S1GFS MXG
Manufacturer	TSC (Taiwan Semiconductor)
Description	DIODE, 1A, 400V, SOD-128
Lead Free Status / RoHS Status

~~In Stock~~ 1252407 pcs
Reference Price (In US Dollars)	14000 pcs
Reference Price (In US Dollars)	$0.018

Product parameter
Data sheet

Product parameter

Part Number	S1GFS MXG	Manufacturer	TSC (Taiwan Semiconductor)
Description	DIODE, 1A, 400V, SOD-128	Lead Free Status / RoHS Status
Quantity Available	1252407 pcs	Data sheet	S1DFS - S1MFS
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Voltage - DC Reverse (Vr) (Max)	400V	Supplier Device Package	SOD-128
Speed	Standard Recovery >500ns, > 200mA (Io)	Series	-
Packaging	Tape & Reel (TR)	Package / Case	SOD-128
Other Names	S1GFSMXG	Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Diode Type	Standard
Detailed Description	Diode Standard 400V 1A Surface Mount SOD-128	Current - Reverse Leakage @ Vr	1µA @ 400V
Current - Average Rectified (Io)	1A	Capacitance @ Vr, F	9pF @ 4V, 1MHz
