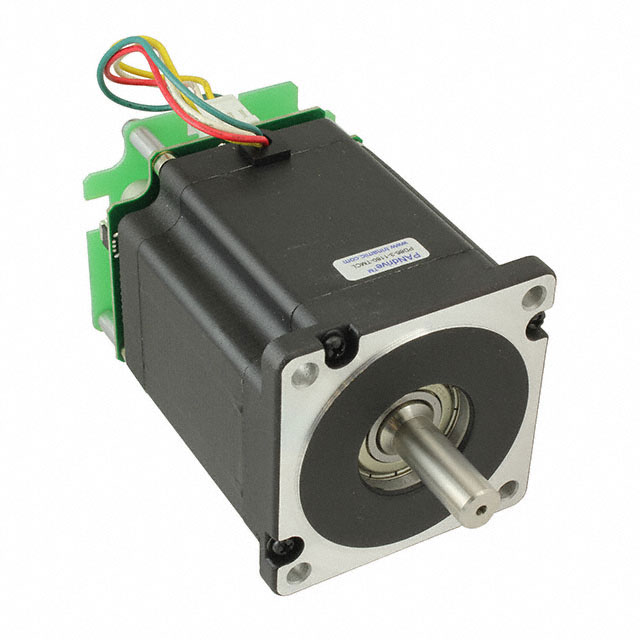

PD86-3-1180-CANOPEN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PD86-3-1180-CANOPEN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PD86-3-1180-CANOPEN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PD86-3-1180-CANOPEN |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | STEPPER MOTOR HYBRID BIPOLAR 48V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $232.20 | $225.468 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PD86-3-1180-CANOPEN | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | STEPPER MOTOR HYBRID BIPOLAR 48V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 166 pcs | Data sheet | PD86-1180 Short SpecTMCM-1180,PD86-1180 Hardware Manual |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 6.2 lbs (2.8kg) |
| Voltage - Rated | 48VDC | Type | Hybrid |
| Torque - Holding (oz-in / mNm) | 991.28 / 7000 | Termination Style | Wire Leads with Connector |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 3.382" x 3.382" (85.90mm x 85.90mm) | Series | PANdrive™ |
| Rotor Inertia | - | Other Names | 1460-1123 30-0153 30-0290 |
| Operating Temperature | - | NEMA Frame Size | 34 |
| Mounting Hole Spacing | 2.740" (69.60mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Length - Shaft and Bearing | 1.310" (33.27mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Integrated Controller, Flatted Shaft |
| Diameter - Shaft | 0.500" (12.70mm) | Detailed Description | Bipolar Stepper Motor Frame Size 34 200 Step 5.5A 48VDC |
| Current Rating | 5.5A | Coil Type | Bipolar |
| Approvals | - | Accuracy | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
