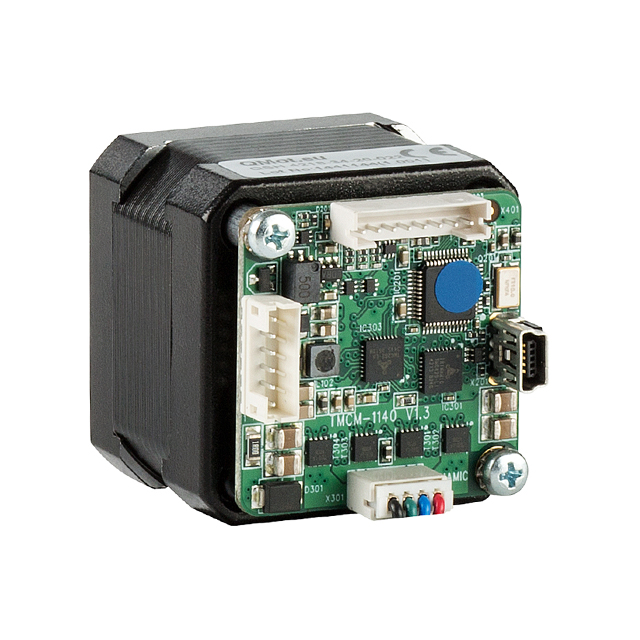

PD42-3-1240-TMCL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PD42-3-1240-TMCL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PD42-3-1240-TMCL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PD42-3-1240-TMCL |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | PANDRIVE NEMA17, 24V, 0.44NM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $79.382 | $67.526 | $62.862 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PD42-3-1240-TMCL | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | PANDRIVE NEMA17, 24V, 0.44NM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 513 pcs | Data sheet | PD-42-x-1240 Hardware ManualPD42-1240 TMCL Firmware Manual |
| Category | Motors, Solenoids, Driver Boards/Modules | Voltage - Rated | 10 ~ 30VDC |
| Type | - | Torque - Holding (oz-in / mNm) | 62.31 / 440 |
| Termination Style | Wire Leads with Connector | Steps per Revolution | 200 |
| Step Angle | 1.8° | Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| Series | PANdrive™ | Rotor Inertia | 68gcm² |
| Other Names | 1460-1267 30-0307 PD-42-3-1240-TMCL |
Operating Temperature | -20°C ~ 50°C |
| NEMA Frame Size | 17 | Mounting Hole Spacing | 1.220" (31.00mm) |
| Manufacturer Standard Lead Time | 8 Weeks | Length - Shaft and Bearing | 0.945" (24.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Integrated Controller, Flatted Shaft |
| Diameter - Shaft | 0.197" (5.00mm) | Detailed Description | Bipolar Stepper Motor Frame Size 17 200 Step 2A 10 ~ 30VDC |
| Current Rating | 2A | Coil Type | Bipolar |
| Coil Resistance | 1.4 Ohms | Approvals | - |
| Accuracy | ±0.05% |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
