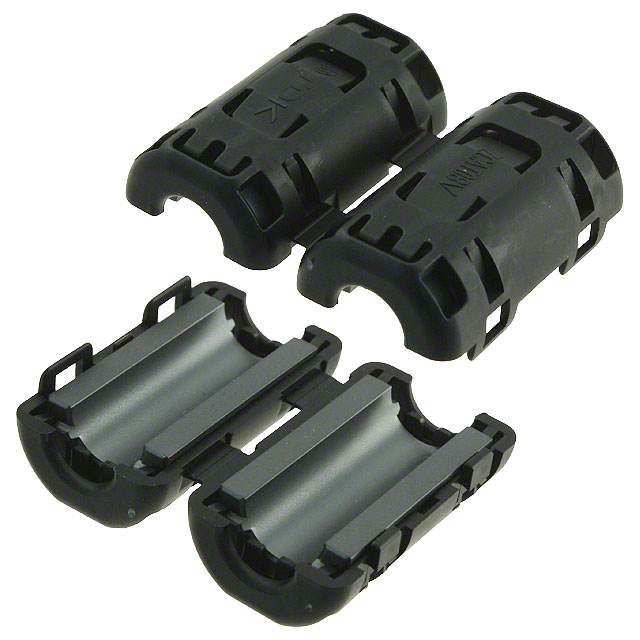

ZCAT08V-BK
![ZCAT08V-BK](/thumb/medium/eb/ZCAT08V-BK.jpg)
![](/upfile/linecard/medium_TDK-Corporation.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZCAT08V-BK with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ZCAT08V-BK with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | ZCAT08V-BK |
---|---|
Manufacturer | TDK Corporation |
Description | FERRITE CORE 120 OHM HINGED 8MM |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
---|---|---|---|---|---|
$1.398 | $1.199 | $0.899 | $0.874 | ||
100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
$0.774 | $0.724 | $0.674 | $0.624 |
- Product parameter
- Data sheet
Product parameter
Part Number | ZCAT08V-BK | Manufacturer | TDK Corporation |
---|---|---|---|
Description | FERRITE CORE 120 OHM HINGED 8MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 56033 pcs | Data sheet | ZCAT-V Series |
Category | Filters | Type | Round |
Series | ZCAT-V | Ratings | AEC-Q200 |
Outer Dimension | 0.744" W x 0.724" H (18.90mm x 18.40mm) | Other Names | 445-6692 ZCAT08VBK |
Mounting Type | Free Hanging | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material | - | Length | 1.280" (32.50mm) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inner Dimension | 0.315" Dia (8.00mm) |
Impedance @ Frequency | 120 Ohm @ 100MHz | Detailed Description | Hinged (Snap On) Free Hanging Ferrite Core 120 Ohm @ 100MHz ID 0.315" Dia (8.00mm) OD 0.744" W x 0.724" H (18.90mm x 18.40mm) Length 1.280" (32.50mm) |
Design | Hinged (Snap On) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
