ACH4518-102-TD01

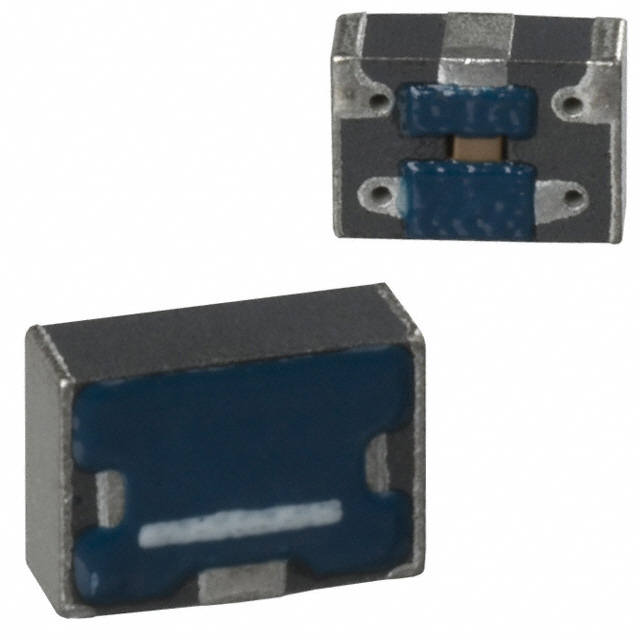

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACH4518-102-TD01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACH4518-102-TD01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACH4518-102-TD01 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FILTER LC(T) SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 3000 pcs | 5000 pcs | 10000 pcs | 25000 pcs |
|---|---|---|---|---|---|
| $0.097 | $0.092 | $0.086 | $0.08 | $0.076 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | ACH4518-102-TD01 | Manufacturer | TDK Corporation |
|---|---|---|---|
| Description | FILTER LC(T) SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 312696 pcs | Data sheet | ACH Series |
| Category | Filters | Voltage - Rated | 50V |
| Values | - | Type | Low Pass |
| Technology | LC (T-Type) | Size / Dimension | 0.071" L x 0.177" W (1.80mm x 4.50mm) |
| Series | ACH | Resistance - Channel (Ohms) | 0.06 |
| Packaging | Tape & Reel (TR) | Package / Case | 1812 (4532 Metric), 3 PC Pad |
| Other Names | 445-2124-2 ACH4518-102 ACH4518-102-T ACH4518-102-TD01-ND ACH4518102TD01 |
Operating Temperature | -40°C ~ 125°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.138" (3.50mm) | Filter Order | 3rd |
| ESD Protection | No | Detailed Description | LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel 2A 1812 (4532 Metric), 3 PC Pad |
| Current | 2A | Center / Cutoff Frequency | - |
| Attenuation Value | 25dB @ 65MHz ~ 150MHz | Applications | General Purpose |
