XZMDKVG56W

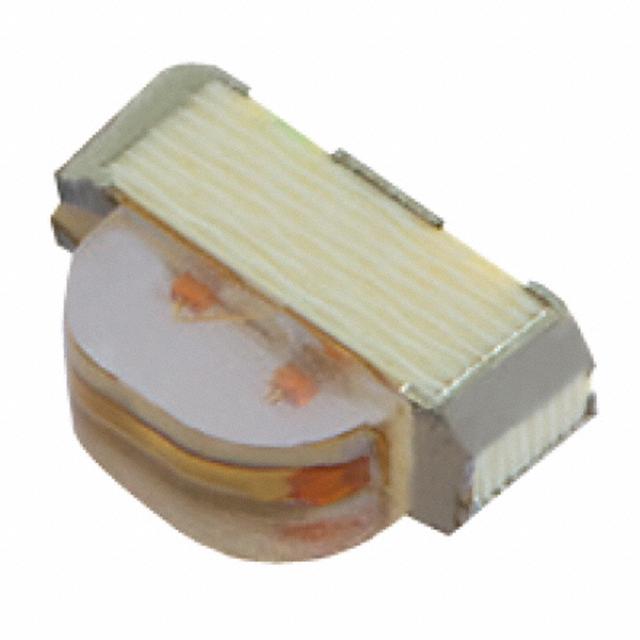

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XZMDKVG56W with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XZMDKVG56W with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XZMDKVG56W |
|---|---|
| Manufacturer | SunLED |
| Description | LED GREEN/RED CLEAR CHIP SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.211 | $0.151 | $0.123 | $0.099 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.083 | $0.071 | $0.055 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | XZMDKVG56W | Manufacturer | SunLED |
|---|---|---|---|
| Description | LED GREEN/RED CLEAR CHIP SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 425705 pcs | Data sheet | XZMDKVG56W |
| Category | Optoelectronics | Wavelength - Peak | 574nm Green, 645nm Red |
| Wavelength - Dominant | 570nm Green, 630nm Red | Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.95V Red |
| Viewing Angle | 140° | Supplier Device Package | Chip LED |
| Size / Dimension | 3.00mm L x 2.00mm W | Series | - |
| Packaging | Cut Tape (CT) | Package / Case | 2-SMD, No Lead |
| Other Names | 1497-1184-1 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Millicandela Rating | 69mcd Green, 79mcd Red |
| Manufacturer Standard Lead Time | 6 Weeks | Lens Transparency | Clear |
| Lens Style/Size | Rectangle with Domed Top, 2.00mm x 1.00mm | Lens Color | Colorless |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height (Max) | 1.00mm |
| Features | - | Detailed Description | Green, Red 570nm Green, 630nm Red LED Indication - Discrete 2.1V Green, 1.95V Red 2-SMD, No Lead |
| Current - Test | 20mA Green, 20mA Red | Configuration | Common Anode |
| Color | Green, Red |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
