CDRH3D23NP-4R7PC

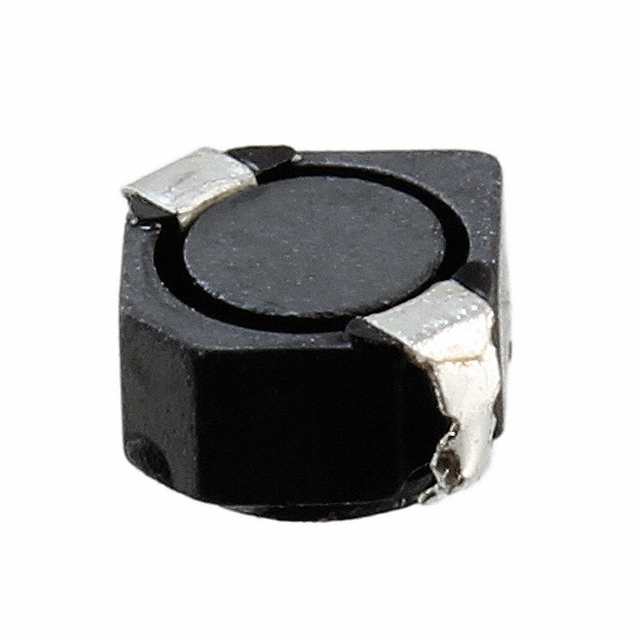

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CDRH3D23NP-4R7PC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CDRH3D23NP-4R7PC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CDRH3D23NP-4R7PC |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | FIXED IND 4.7UH 1.9A 68.8 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 2500 pcs | ||
|---|---|---|---|---|---|
| $0.159 | $0.141 | $0.137 | |||
| 5000 pcs | 12500 pcs | 25000 pcs | |||
| $0.132 | $0.128 | $0.123 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CDRH3D23NP-4R7PC | Manufacturer | Sumida Corporation |
|---|---|---|---|
| Description | FIXED IND 4.7UH 1.9A 68.8 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 194074 pcs | Data sheet | CDRH3D23 |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±25% | Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) | Shielding | Shielded |
| Series | CDRH3D23 | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 308-1653-2 CDRH3D23NP4R7PC |
| Operating Temperature | -40°C ~ 105°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 4.7µH |
| Height - Seated (Max) | 0.098" (2.50mm) | Frequency - Self Resonant | - |
| Detailed Description | 4.7µH Shielded Inductor 1.9A 68.8 mOhm Max Nonstandard | DC Resistance (DCR) | 68.8 mOhm Max |
| Current Rating | 1.9A | Current - Saturation | 1.3A |
