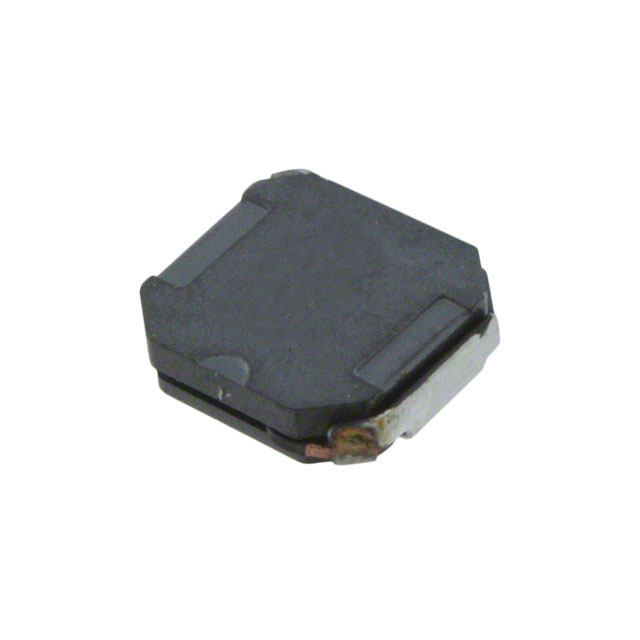

CDPH45D13FHF-3R3MC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CDPH45D13FHF-3R3MC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CDPH45D13FHF-3R3MC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CDPH45D13FHF-3R3MC |
|---|---|
| Manufacturer | Sumida Corporation |
| Description | FIXED IND 3.3UH 1.8A 96 MOHM SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CDPH45D13FHF-3R3MC | Manufacturer | Sumida Corporation |
|---|---|---|---|
| Description | FIXED IND 3.3UH 1.8A 96 MOHM SMD | Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Quantity Available | 4298 pcs | Data sheet | CDPH45D13F |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.185" L x 0.177" W (4.70mm x 4.50mm) | Shielding | Shielded |
| Series | CDPH | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | 308-1635-1 |
| Operating Temperature | -40°C ~ 105°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 3.3µH | Height - Seated (Max) | 0.055" (1.40mm) |
| Frequency - Self Resonant | - | Detailed Description | 3.3µH Shielded Inductor 1.8A 96 mOhm Max Nonstandard |
| DC Resistance (DCR) | 96 mOhm Max | Current Rating | 1.8A |
| Current - Saturation | 1.76A |
