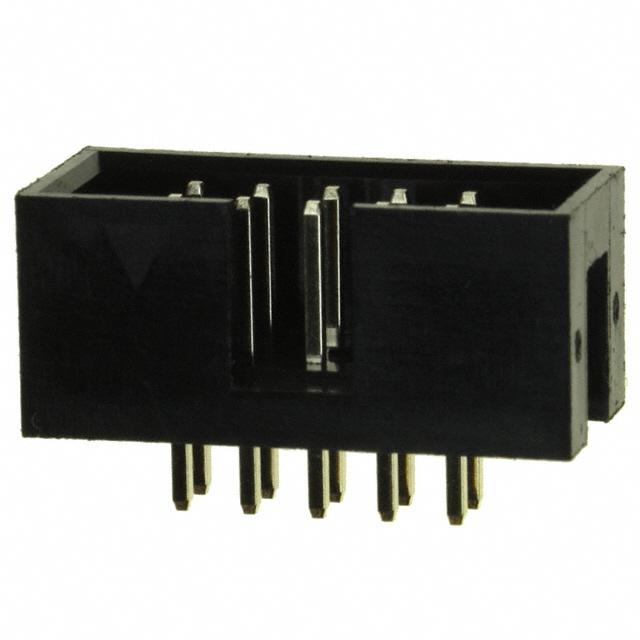

SBH11-PBPC-D05-ST-BK
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SBH11-PBPC-D05-ST-BK with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SBH11-PBPC-D05-ST-BK with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | SBH11-PBPC-D05-ST-BK |
---|---|
Manufacturer | Sullins Connector Solutions |
Description | CONN HEADER 2.54MM 10POS GOLD |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
---|---|---|---|---|---|
$0.153 | $0.145 | $0.102 | $0.087 | ||
1000 pcs | 5000 pcs | 10000 pcs | |||
$0.073 | $0.062 | $0.06 |
- Product parameter
- Data sheet
Product parameter
Part Number | SBH11-PBPC-D05-ST-BK | Manufacturer | Sullins Connector Solutions |
---|---|---|---|
Description | CONN HEADER 2.54MM 10POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 312050 pcs | Data sheet | SBH11 Series Datasheet |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board or Cable |
Shrouding | Shrouded - 4 Wall | Series | SBH11 |
Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Tray | Overall Contact Length | - |
Other Names | S9169 SBH11PBPCD05STBK |
Operating Temperature | -40°C ~ 105°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 10 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | 9.65mm, 11.2mm, 13.35mm, 18.35mm | Manufacturer Standard Lead Time | 4 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
Insulation Height | 0.358" (9.10mm) | Insulation Color | Black |
Ingress Protection | - | Features | Keying Slot |
Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 10 position 0.100" (2.54mm) |
Current Rating | 3A | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Brass |
Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
