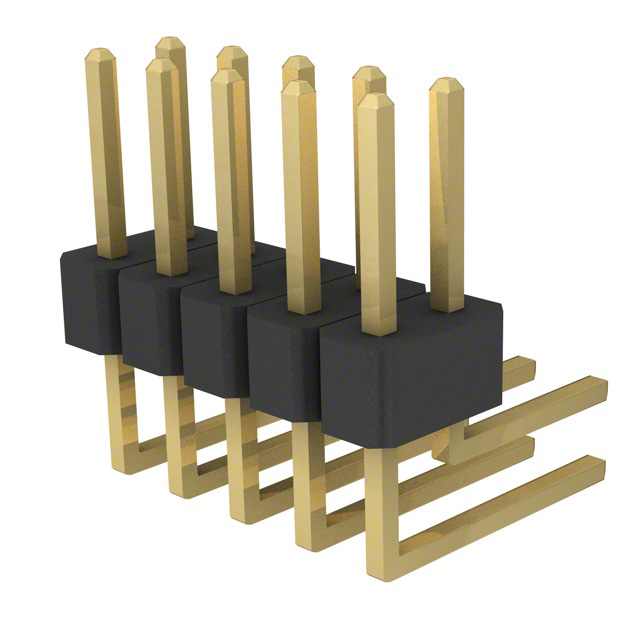

PRPC005DBBN-M71RC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PRPC005DBBN-M71RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PRPC005DBBN-M71RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | PRPC005DBBN-M71RC |
---|---|
Manufacturer | Sullins Connector Solutions |
Description | CONN HEADER .100" DUAL R/A 10POS |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | Get a quote |
- Product parameter
- Data sheet
Product parameter
Part Number | PRPC005DBBN-M71RC | Manufacturer | Sullins Connector Solutions |
---|---|---|---|
Description | CONN HEADER .100" DUAL R/A 10POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 5979 pcs | Data sheet | xxxCxxxDxxN-M71RC.100” Male Headers Datasheet |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board or Cable |
Shrouding | Unshrouded | Series | - |
Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Bulk | Overall Contact Length | - |
Other Names | S2121EC-05 S9523E-05 S9523E-05-ND |
Operating Temperature | -40°C ~ 105°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.197" (5.00mm) |
Insulation Color | Black | Ingress Protection | - |
Features | - | Fastening Type | Push-Pull |
Detailed Description | Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm) | Current Rating | 3A per Contact |
Contact Type | Male Pin | Contact Shape | Square |
Contact Material | Brass | Contact Length - Post | 0.220" (5.58mm) |
Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | Flash |
Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Gold |
Contact Finish - Mating | Gold | Connector Type | Header, Breakaway |
Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
