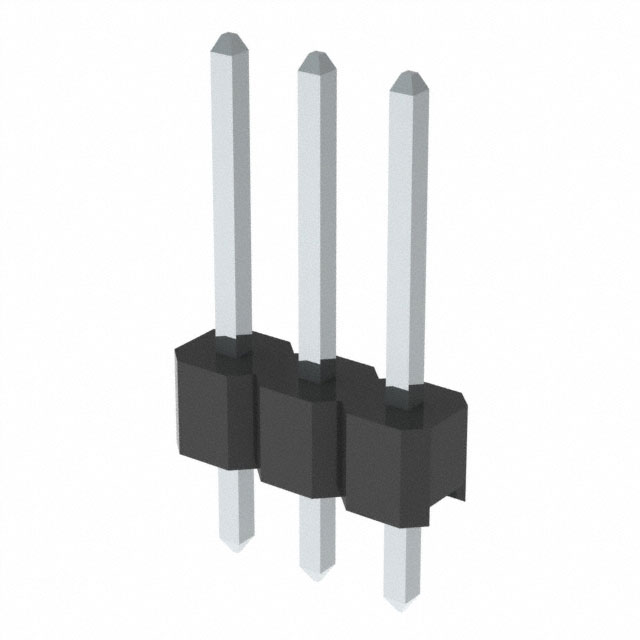

PREC003SFAN-RC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PREC003SFAN-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PREC003SFAN-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | PREC003SFAN-RC |
---|---|
Manufacturer | Sullins Connector Solutions |
Description | CONN HEADER .100" SNGL STR 3POS |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
---|---|---|---|---|---|
$0.058 | $0.051 | $0.042 | $0.033 | ||
1000 pcs | 5000 pcs | 10000 pcs | |||
$0.028 | $0.026 | $0.025 |
- Product parameter
- Data sheet
Product parameter
Part Number | PREC003SFAN-RC | Manufacturer | Sullins Connector Solutions |
---|---|---|---|
Description | CONN HEADER .100" SNGL STR 3POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 939303 pcs | Data sheet | zzzCzzzSzzN-RC Drawing |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board or Cable |
Shrouding | Unshrouded | Series | - |
Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Bulk | Overall Contact Length | 0.537" (13.63mm) |
Other Names | S1212EC-03 S9502E-03 S9502E-03-ND |
Operating Temperature | -40°C ~ 105°C |
Number of Rows | 1 | Number of Positions Loaded | All |
Number of Positions | 3 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.098" (2.50mm) |
Insulation Color | Black | Ingress Protection | - |
Features | - | Fastening Type | Push-Pull |
Detailed Description | Connector Header Through Hole 3 position 0.100" (2.54mm) | Current Rating | 3A per Contact |
Contact Type | Male Pin | Contact Shape | Square |
Contact Material | Brass | Contact Length - Post | 0.120" (3.05mm) |
Contact Length - Mating | 0.318" (8.08mm) | Contact Finish Thickness - Post | - |
Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
Contact Finish - Mating | Tin | Connector Type | Header, Breakaway |
Applications | - |
