PEC14SGAN

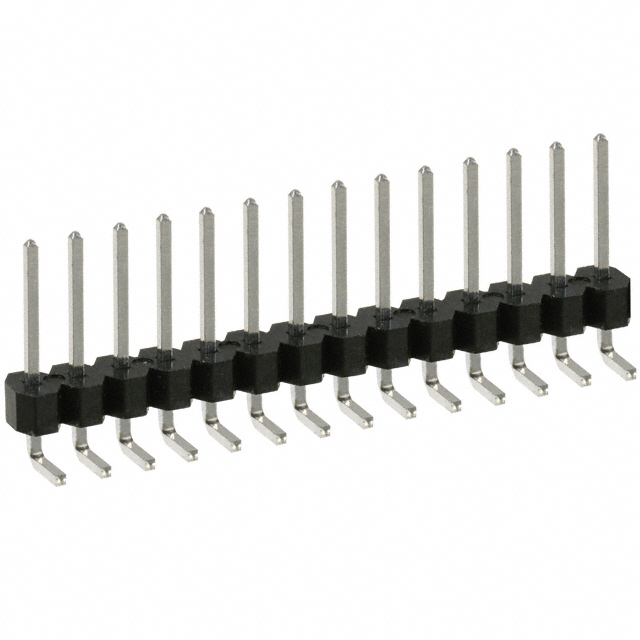

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PEC14SGAN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PEC14SGAN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | PEC14SGAN |
---|---|
Manufacturer | Sullins Connector Solutions |
Description | CONN HEADER .100 SINGL R/A 14POS |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
---|---|---|---|---|---|
$0.522 | $0.467 | $0.384 | $0.304 | ||
1000 pcs | 5000 pcs | 10000 pcs | |||
$0.261 | $0.238 | $0.229 |
- Product parameter
- Data sheet
Product parameter
Part Number | PEC14SGAN | Manufacturer | Sullins Connector Solutions |
---|---|---|---|
Description | CONN HEADER .100 SINGL R/A 14POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 94554 pcs | Data sheet | .100" Headers Datasheet |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board or Cable |
Shrouding | Unshrouded | Series | - |
Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Bulk | Overall Contact Length | - |
Other Names | S1312E-14 | Operating Temperature | -65°C ~ 125°C |
Number of Rows | 1 | Number of Positions Loaded | All |
Number of Positions | 14 | Mounting Type | Through Hole, Right Angle |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
Insulation Height | 0.140" (3.56mm) | Insulation Color | Black |
Ingress Protection | - | Features | - |
Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm) |
Current Rating | 3A | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | 0.100" (2.54mm) | Contact Length - Mating | 0.318" (8.08mm) |
Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
Connector Type | Header, Breakaway | Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
