GRPB122VWQS-RC

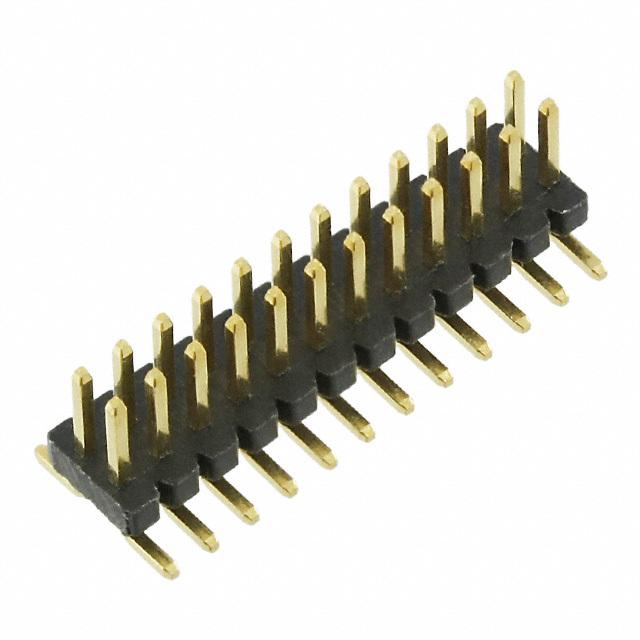

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GRPB122VWQS-RC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy GRPB122VWQS-RC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | GRPB122VWQS-RC |
---|---|
Manufacturer | Sullins Connector Solutions |
Description | CONN HEADER .050" 24PS DL SMD AU |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
---|---|---|---|---|---|
$0.851 | $0.773 | $0.663 | |||
500 pcs | 1000 pcs | 5000 pcs | |||
$0.552 | $0.473 | $0.456 |
- Product parameter
- Data sheet
Product parameter
Part Number | GRPB122VWQS-RC | Manufacturer | Sullins Connector Solutions |
---|---|---|---|
Description | CONN HEADER .050" 24PS DL SMD AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 76694 pcs | Data sheet | Male Headers .050" Data SheetGRPBxx2VWQS-RC |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board or Cable |
Shrouding | Unshrouded | Series | - |
Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
Packaging | Bulk | Overall Contact Length | - |
Other Names | GRPB122VWQSRC S9012E-12 |
Operating Temperature | -40°C ~ 105°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 24 | Mounting Type | Surface Mount |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA9T), Nylon 9T |
Insulation Height | 0.039" (1.00mm) | Insulation Color | - |
Ingress Protection | - | Features | - |
Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 24 position 0.050" (1.27mm) |
Current Rating | 1A | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Brass |
Contact Length - Post | - | Contact Length - Mating | 0.118" (3.00mm) |
Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
