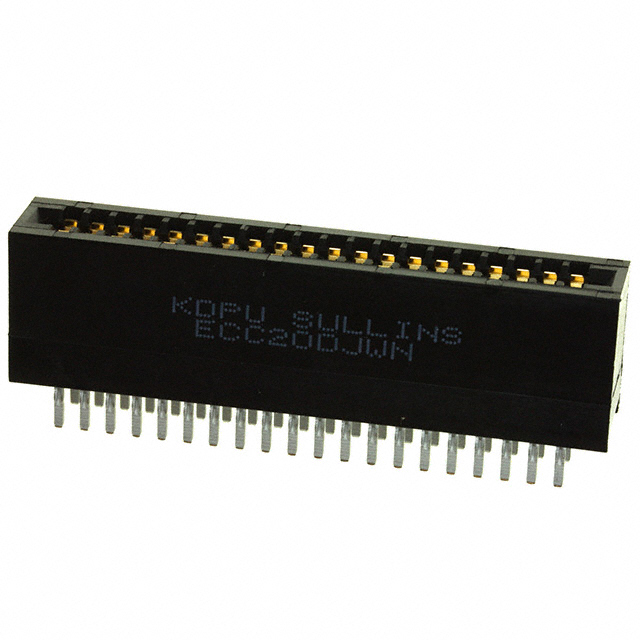

ECC20DJWN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECC20DJWN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ECC20DJWN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | ECC20DJWN |
---|---|
Manufacturer | Sullins Connector Solutions |
Description | CONN EDGE DUAL FMALE 40POS 0.100 |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 10 pcs | ||||
---|---|---|---|---|---|
$2.873 |
- Product parameter
- Data sheet
Product parameter
Part Number | ECC20DJWN | Manufacturer | Sullins Connector Solutions |
---|---|---|---|
Description | CONN EDGE DUAL FMALE 40POS 0.100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 10461 pcs | Data sheet | Edgecards .100 in Data SheetECCxxDxxN/-S1136 Drawing |
Category | Connectors, Interconnects | Termination | Press-Fit |
Series | - | Read Out | Dual |
Pitch | 0.100" (2.54mm) | Packaging | Tray |
Other Names | S7253 | Operating Temperature | -65°C ~ 125°C |
Number of Rows | 2 | Number of Positions/Bay/Row | 20 |
Number of Positions | 40 | Mounting Type | Through Hole |
Material - Insulation | Polybutylene Terephthalate (PBT) | Manufacturer Standard Lead Time | 3 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Gender | Female |
Flange Feature | - | Features | - |
Contact Type | - | Contact Material | Phosphor Bronze |
Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
Color | Black | Card Type | Non Specified - Dual Edge |
Card Thickness | 0.062" (1.57mm) |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
